ESC 300A Motor Controller
Hobiba Marine ESC 300A range controllers are outstanding, fully programmable controllers for "brushless“ sensorless and sensor motors (BLCD motors) for models of cars, boats, submarines, airplanes, helicopters etc.
Protection Level: IP67
Max Continuous Current: 300A
Max Working Current: 500A
Bec: 5V/1.5A, 14V/200mA
Lipo Battery Range: 30-84 VDC
Signal Receivable: PPM, 1-2ms
Cooling Solution: Heatsink plate & air cooling
- Product description
- Specification
- Dyno Tested data

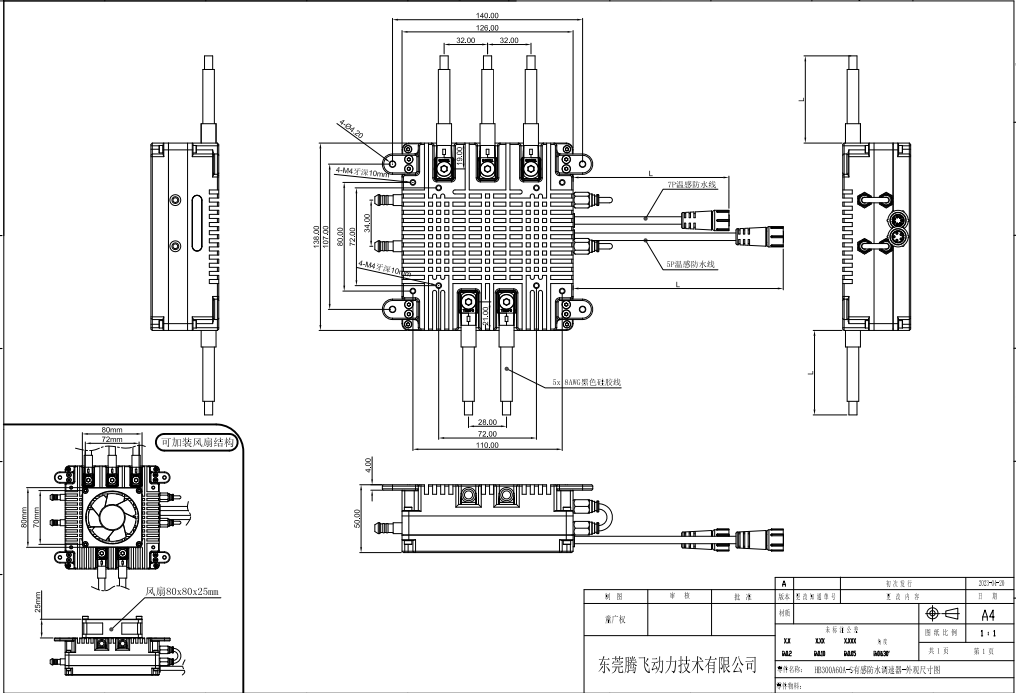

- Dimension
-
- Brand: Hobiba
- Commodity name: ESC 300A Motor Controller
- Commodity ID: esc300a
Hobiba Marine ESC 300A range controllers are outstanding, fully programmable controllers for "brushless“ sensorless and sensor motors (BLCD motors) for models of cars, boats, submarines, airplanes, helicopters etc. <li>Protection Level: IP67 </li> <li>Max Continuous Current: 300A</li> <li>Max Working Current: 500A</li> <li>Bec: 5V/1.5A, 14V/200mA</li> <li>Lipo Battery Range: 30-84 VDC</li> <li>Signal Receivable: PPM, 1-2ms</li> <li>Cooling Solution: Heatsink plate & air cooling</li>
Hobiba Marine ESC 300A range controllers are outstanding, fully programmable controllers of the highest quality for "brushless“ sensorless and sensor motors (BLCD motors) for models of cars, boats, submarines, airplanes, helicopters etc.Features
- The controllers use powerful 16 bit processors with excellent computing performance to satisfy all requirements demands.
- The controllers offer very high powert, up to 500A / 84V (= 20 Lipol), that is up to 42kW.
- The controllers support multi-choice of model types (airplane, car, boat, helicopter – all in one) depends only on your settings.
- The controllers feature innovative waterproof design, to increase water&dust-proofing performance in different climates.
- Built-in ultra-powerful switch mode BEC with an output of 5V/1.5A BEC, supporting power for receiver or master controller.
- When connected with PC via a USB port, controllers are able to transfer both the measured (logged) values data as well as warning and error notifications into the PC in real time.Also Firmware upgradeable online.
- Multi-Cooling solutions available: Aluminum heat sinks, Water-cooling and Fan-cooling.
- Multiple protection functions: Stall Protect, Over Current/Voltage/Temperature, Remote Control Signal Loss Protection, and Battery Low Voltage Protection.
- Multiple Motor Timing Angle selections, support most of the brushless dc motors (both sensored and sensorless) on market.
- Controllers support NiCd, NiMH, Lipol, Li-Ion, A123, acid (Pb) cells and possibly other new battery type (universal settings).
- Support LED program card, LCD program box,OTA programmer (Note: optional) to set the parameters of the ESC.
- Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.
Factory Default Setting
Programme Parameter Setup Parameter Operation Mode Forward Forward/ Backward Motor Rotate Direction CW CCW Forward Throttle Force 20% 40% 60% 80% 100% Reverse Throttle Force 20% 40% 60% 80% 100% Motor Timing Extremely Low Low Normal High Extremely High Stepping Accelerated Super Soft Soft Medium Speed High Speed Super High Speed Low Voltage of Battery Protection Unprotected 3.1V/Cell 3.2V/Cell 3.3V/Cell 3.4V/Cell Frequency Selection) High Low Minimum Throttle Value 1000 Maximum Throttle Value 2000 Medium Throttle Value 1500 ESC Temperature Protection Turn Off 80C 90C 100C 110C 120C 130C 140C Demagnetization Compensation Turn Off Low High Starting Strength 1.2.3.4.6 9 12. 18 25 37 50 62 75 Motor Shutdown and Locked Turn Off Open Motor Temperature Protection Turn Off 95C 100C 105C 110C 115C 120C 125C For more information, please contact sales@quanly.cn
Keywords:- marine esc
- brushless controller
- motor controller
- Hobiba
- ESC 300A
- bldc motor controller
- electronic speed controller
- pwm controller
- motor driver
- bldc motor driver
- motor speed controller
-
Water Proof ESC Specially Part No. HB300A60V-SL-WP HB250A84V-SL-WP HB200A60V-SL-WP Max continuous current（A) 300A 250A 200A Max working Current）（A) 500A 450 350A BEC output (V/A) 5V/1.5A,14V/200mA 5V/1.5A,14V/200mA 5V/1.5A ，14V/200mA Compatible motor D85L165,D107L125,D107L165,D126L200 D85L165,D107L125,D107L165,D90L96,D110L77,D126L200 D65L161,D70L165,D85L134,D85L165,D65,D83 Voltage/Lipo Battery Range 30-60V/10-14S LiPo 42-84V/14-20S LiPo 30-60V/10-14S LiPo Mass（kg） 1.0Kg 1.0Kg 1.0Kg Gange of wires to Motor 4AWG 4AWG 6AWG Dimension（mm） L136*W96*H51 Wires to Receiver 3 wire with water proof connector cooling Solution Heatsink plate & air cooling IP Grade IP67 ESC temperature warning 100度/可设 Motor temperature warning 100 celcium degree receiver signal PPM,1-2ms -
