D85L134 Water-Cooled Brushless Motor 12kw


D85L134 motors are designed for high performance underwater applications where rapid acceleration and high speed are called for.
  • Launched in Oct, 2019
  • Protection Level: IP63
  • Diameters at 85mm
  • Configuration: 12N10P
  • Speeds up to 12,348 rpm
  • Maximum output power up to 12KW
  • Maximum Torque output up to 22N*m
  • Cooling Solution: Water cooling

    • Product description
    • Specification
    • Dyno Tested data

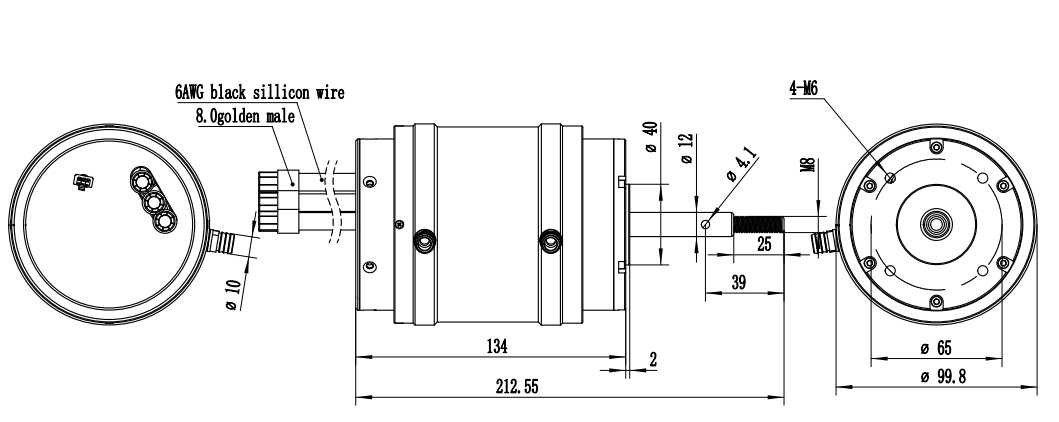

    • Dimension
      • Brand: Hobiba
      • Commodity name: D85L134 Water-Cooled Brushless Motor 12kw
      • Commodity ID: 85134wc

      D85L134 motors are designed for high performance underwater applications where rapid acceleration and high speed are called for. <li>Launched in Oct, 2019</li> <li>Protection Level: IP63</li> <li>Diameters at 85mm</li> <li>Configuration: 12N10P</li> <li>Speeds up to 12,348 rpm</li> <li>Maximum output power up to 12KW</li> <li>Maximum Torque output up to 22N*m</li> <li>Cooling Solution: Water cooling</li>

      With an advanced 10-pole encapsulated core and 85mm diameter, these series compact DC motors deliver high torque up to 22 N.M with maximum output power at 12KW. Thanks to the modern sealing technology, these water-cooling motors are usually customized to fit into water-tight chamber shell to form a whole motor system,  and are not expected to dip in water. They can be operated permanently underwater and have been widely used for high speed underwater thruster in various water sports, like efoil, e-surfboard, eSUP, hydrofoiling, Foiling boat.etc

      • Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
      • High performance: Our motors provide extremely high torques with a minimum of power consumption.
      • Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient and smooth operation.
      • High Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
      • Compact: High efficiency and high power density realized in a compact design.
      • Long life: Double seal ball bearings with moisture resistant for long life.
      • Cooling solution: water-cooling & Air-Cooling.
      • Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion.

      We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.

      Can be customized for

      • Sensor or sensorless
      • Winding Current
      • Shaft Options
      • Cable and Connector
      • Kv Ratings
      • Mounting Options
      • Encoder or Non
      Keywords:
      • D85L134
      • BLDC motor
      • Electric motor
      • Quanly motor
      • Brushless dc motor
      • marine motor
      • surfboard motor
      • sup motor
      • brushless motor 10kw
      • efoil motor
      • efoil
      • surfboard
      • Submersible Motor
      • outboard motor
      • boat motor
      • propulsion
      • underwater thruster
      • electric trolling motor
      • outboard boat motor
    • Model P/N D85L134-280 D85L134-240 D85L134-210 D85L134-168 D85L134-140 D85L134-120 D85L134-105
      Winding Turn & Connection 3T 3.5T 4T 5T 6T 7T 8T
      LiPO/Voltage Range 5-10S (16-42V) 6-12S (20-48.0V) 6-14S (20-58.8V) 8-16S (28-67.2V) 8-18S (28-75.6V) 12-24S (40-100.8V) 12-28S (40-117.6V)
      Max RPM 11,760  11,520  12,348  11,290  10,584  12,096  12,348
      kV(RPM/V) 280 240 210 168 140 120 105
      Kt(N*M/A) 0.0454 0.05297 0.05963 0.07567 0.09081 0.10594 0.12108
      No Loading Current at 8.4V (A) 2.8 2.3 2.1 1.8 1.5 1.4 1.2
      Max Power(W) 10,800  11,776  11,500  11,000  12,000  11,500  11,300
      Peak Current(A) 380 330 285 230 190 164 143
      Effeciency 90% 90.0% 90% 90% 90% 90% 90%
      Max torque at 60% (N*M) 18.0  18.8  19.5  21.0  21.8  21.5  21.0
      Weight(kg) 2.8  2.8  2.8  2.8  2.8  2.5  2.2
      Construction 12N/10P
      Cooling Solution Water Cooling
      Max Working Temperature 120ºC
      Dimension D85*L134
      Shaft Extension  D10*L30
      Lead Wires Extension 150±5MM
      Insulation Voltage & Leak Current AC500V/10MA/3S
      Plug 10mm golden plug
      Life Span 10000h
    • Item No. C_
      Voltage
      (V)
      C_
      Current
      (A)
      C_Input Power
      (W)
      C_
      Power Factor
      C_
      Efficiency
      (%)
      M_
      Voltage
      (V)
      M_
      Current
      (A)
      M_Input Power
      (W)
      M_
      Power Factor
      M_
      Frequency
      (Hz)
      M_
      Efficiency
      (%)
      M_
      Speed
      (rpm)
      M_
      Torque
      (N*m)
      M_Output Power(W) Synthesis Efficiency
      (%)
      0 49.66 27.07 1337.72 0.995 97.63777 36.72 22.84 1306.12 0.8989 341.65 88.76308 3710 2.984004 1159.352 86.66629
      1 49.54 38.76 1898.94 0.989 97.81089 36.59 33.57 1857.37 0.8731 334.67 89.51619 3525 4.504004 1662.647 87.55658
      2 49.44 50.78 2459.07 0.9796 97.90814 36.56 44.91 2407.63 0.8466 377.45 89.39938 3354 6.128004 2152.406 87.52927
      3 49.34 62.1 2965.7 0.9678 97.77219 36.53 55.6 2899.63 0.8242 361.14 88.2838 3213 7.608004 2559.903 86.317
      4 49.23 75.54 3540.68 0.952 97.45868 36.55 68.12 3450.7 0.8002 389.61 86.44299 3072 9.272004 2982.888 84.24619
      5 49.15 86.28 3979.78 0.9384 97.19105 36.56 77.86 3867.99 0.7844 361.09 84.5561 2971 10.512 3270.621 82.18095
      6 49.05 100.19 4522.42 0.9203 97.04495 36.6 90.23 4388.78 0.7675 409.04 82.04789 2854 12.048 3600.901 79.62332
      7 48.94 114.95 5076.84 0.9025 96.7921 36.59 103.02 4913.98 0.7527 389.73 78.82083 2734 13.52801 3873.24 76.29234
      8 48.8 131.26 5677.24 0.8863 96.49055 36.55 117 5478 0.7395 403.81 74.94306 2601 15.072 4105.381 72.31297
