D155L210 Waterproof Brushless Motor 45KW


D155L210 WP series are ideal for high performance underwater applications where rapid acceleration and high speed are called for.
  • Launched in May, 2020
  • Protection Level: IP68
  • Diameters at 155mm
  • Configuration: 12N10P
  • Speeds up to 6,451 rpm
  • Maximum output power up to 45KW
  • Maximum Torque up to 76N*m

    • Product description
    • Specification

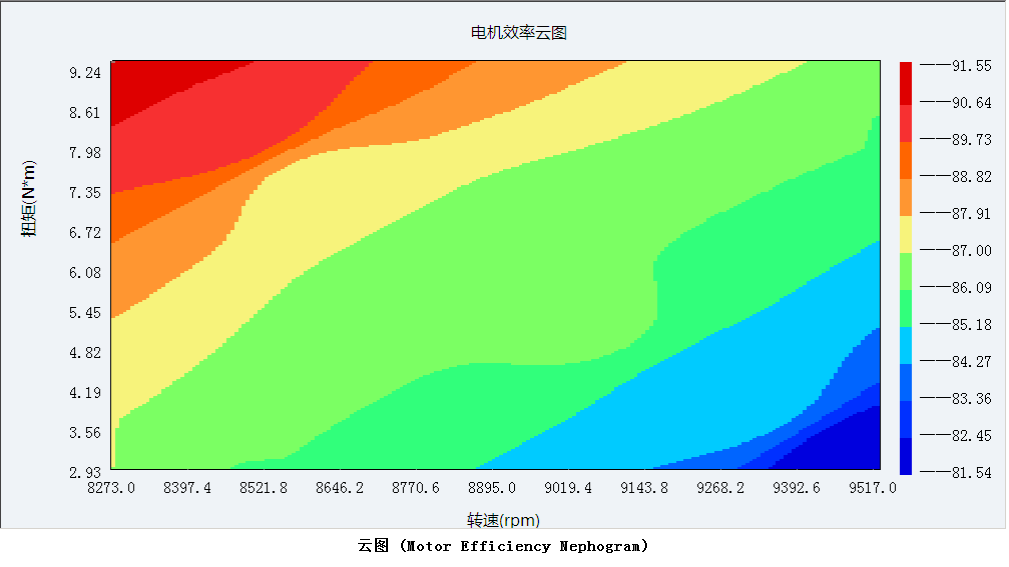

    • Dyno Tested data
    • Dimension
      • Brand: Hobiba
      • Commodity name: D155L210 Waterproof Brushless Motor 45KW
      • Commodity ID: 155210w

      D155L210 WP series are ideal for high performance underwater applications where rapid acceleration and high speed are called for. <li>Launched in May, 2020</li> <li>Protection Level: IP68</li> <li>Diameters at 155mm</li> <li>Configuration: 12N10P</li> <li>Speeds up to 6,451 rpm</li> <li>Maximum output power up to 45KW</li> <li>Maximum Torque up to 76N*m</li>

      With an advanced 10-pole encapsulated core and 155mm diameter, this series compact DC motors deliver high torque up to 70 NM with peak power at 45KW. Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently underwater and have been widely used for high speed underwater thruster in various underwater thruster, like boat motor, electric outboard motor, jetski. etc

      Advantages:

      • Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation
      • High performance: Our motors provide extremely high torques with a minimum of power consumption.
      • Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient & smooth operation.
      • High Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
      • Compact: High efficiency and high power density realized in a compact design.
      • Long life: Double seal ball bearings with moisture resistant for long life
      • Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion

      Keywords:
      • D155L210
      • waterproof motor
      • marine motor
      • 45kw electric motor
      • high power motor
      • electric outboard motor
      • electric boat motor
      • electric motor for jetski
      • waterproof electric motor
      • IP68 motor
      • brushless dc motor 45kw
      • Hobiba motor
      • Quanly motor
    • Variants D155L210-95 D155L210-76 D155L210-63 D155L210-54 D155L210-48 D155L210-38
      Winding Turn & Connection 2.0T 2.5T 3.0T 3.5T 4.0T 5.0T
      LiPo/Voltage Range 8-16S(26-67.2V) 10-20S(35-84V) 10-24S(37-100.8V) 14-28S (51.8-117.6V) 14-32S(51.8-134.4V) 18-40S(57.6-168V)
      Max RPM  6,384  6,384  6,350  6,350  6,451  6384
      kV(RPM/V) 95 76 63 54 48 38
      Kt(N*M/A) 0.1088  0.1328  0.1632  0.1882  0.2150  0.2688
      No Loading Current at 8.4V (A) 5.3 4.30  3.50  3.00  2.70  2.0
      Max power (KW) 45.0 46.0  46.0  45.0  45.0  45.0
      Peak current(A) 1,000  800  670  580  500  400
      Effeciency 89.00% 89.00% 90.00% 91.00% 91.00% 92.00%
      Max torque at 60%(N*M) 69.0  71.0  73.0  72.0  71.0  76
      Rated power at 80% (KW) 26.0  26.0  26.6  26.0  26.0  26.0
      Rating Torque at 80%(N*M)  52.0  53.0  52.0  51.0  51.0  52.0
      Weight(kg) 16.90  16.40  16.70  16.30  16.80  16.80
      Construction 12N/10P
      Max working temperature 120ºC
      Lead wires extension 2AWGx300mm
      Insulation voltage & leak current AC500V/10MA/3S
      Plug 10.0mm plug
      Life Span(hrs) 8,000
