D65L161 Waterproof electric motor 10kw
D65L161 waterproof motors are designed for high performance underwater applications where rapid acceleration and high speed are called for.
Launched in Mar, 2018
Protection Level: IP68
Diameters at 65mm
Configuration: 18N6P
Speeds up to 12,768 rpm
Maximum output power up to 11KW
Rated power: 3000w to 6000w
Maximum Torque up to 15.8N*m
Suitable for efoil, hydrofoil, boat engine, POD drive
D65L120 Waterproof Electric Motor 4kw
This D65L120 waterproof motors are designed for high performance underwater applications where rapid acceleration and high speed are called for.
Launched in Mar, 2018
Protection Level: IP68
Diameters at 65mm
Configuration: 18N/6P
Speeds up to 12,000 rpm
Maximum output power up to 4KW
Maximum Torque up to 95kg*cm
Suitable for efoil assistance, waterbike, pod drive, electric trolling motor, small underwater vehicles
D85L165 Water Cooled Brushless Motor 20kw
D85165 water cooled series are designed for high performance underwater applications where rapid acceleration and high speed are called for.
Launched in Nov, 2019
Protection Level: IP63
Diameters at 85mm
Configuration: 12N10P
Speeds up to 11,172 rpm
Maximum output power up to 20KW
Maximum Torque output up to 30N*m
Cooling Solution: Water cooling
Suitable for jet pump propulsion for surfboard /small boat/Jetboard/eTow

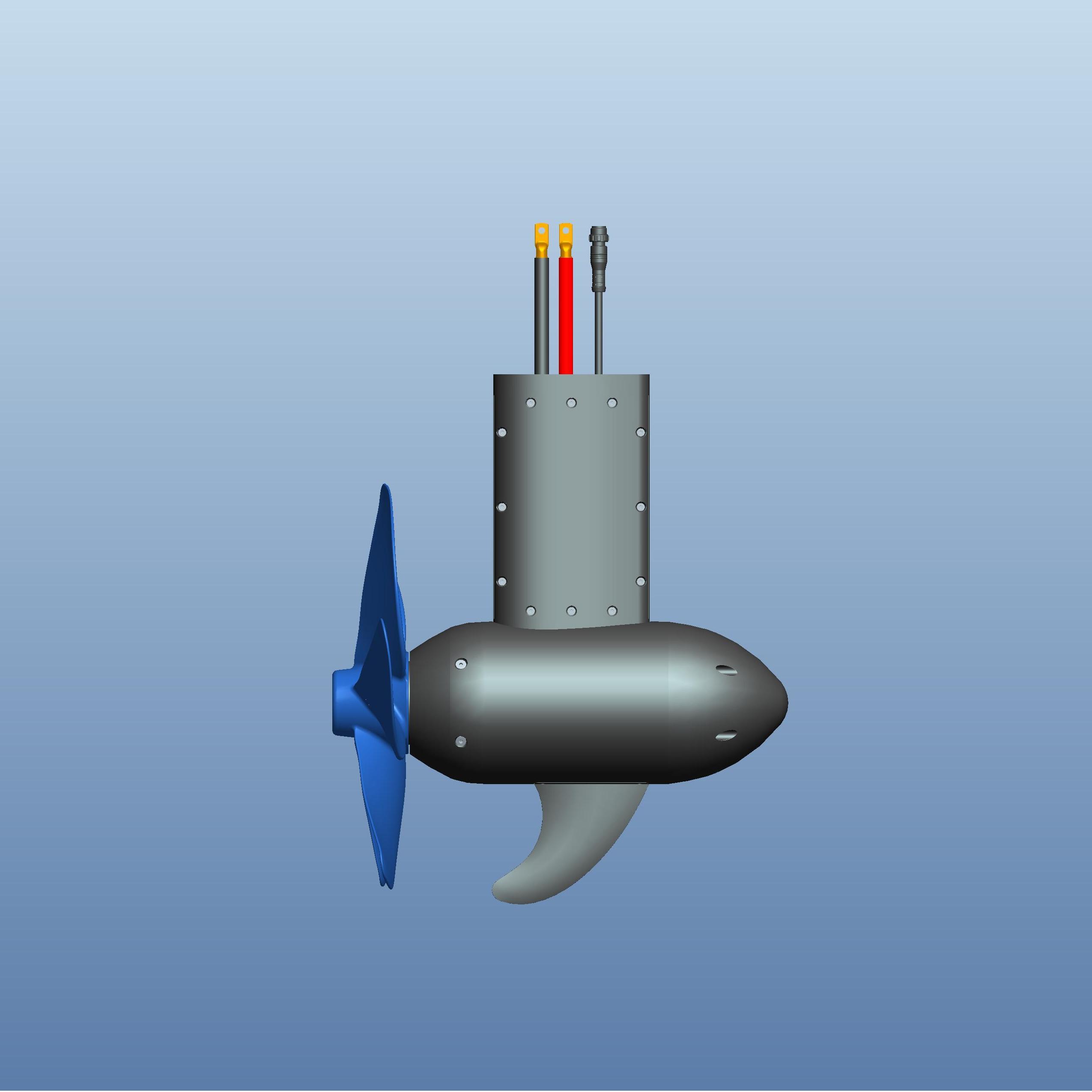

24V Electric POD Drive Motor 1000W
The ePOD-1.0 Electric SUP Thruster is a lightweight electric propulsion system specifically designed for stand-up paddleboards (SUPs), inflatable kayaks, fishing boats, and small rowboats.
The entire unit features a hard-anodized aluminum alloy housing that offers exceptional resistance to seawater corrosion. Weighing only 1.8 kg (3.97 lbs), it is remarkably easy to transport and install. Built with an integrated high-efficiency brushless motor and built-in controller, its streamlined wiring layout minimizes power loss, delivers superior heat dissipation, and ensures stable, long-term operation. The propeller is made from high-strength, dynamically balanced plastic, effectively reducing vibration and noise.
The product is available in two performance configurations:
Option A: 15 kgf thrust / top speed of 4.5 km/h
Option B: 23 kgf thrust / top speed of 7.5 km/h
Both options accommodate boat loads ranging from 45 to 85 kg (99–187 lbs), are rated IP68 waterproof, and are fully compatible with both freshwater and seawater environments. It is ideal for recreational fishing, short-distance water transport, and outdoor water sports.
60V Electric POD Drive Motor 12KW
Space-Saving Electric Propulsion System for New-Build Boats.
The electric Pod Drive motor opens up new design possibilities for naval architects, setting a fresh standard in marine innovation. It enhances any vessel, introducing a new level of luxury and sophistication on board.
