Marine ESC 150A

Hobiba Marine ESC 150A range controllers are outstanding, fully programmable controllers for "brushless“ sensorless and sensor motors (BLCD motors) for models of cars, boats, submarines, airplanes, helicopters etc.
  • Protection Level: IP67
  • Max Continuous Current: 150A
  • Max Working Current: 300A
  • Bec: 5V/1.5A, 14V/200mA
  • Lipo Battery Range: 30-84 VDC
  • Signal Receivable: PPM, 1-2ms
  • Cooling Solution: Heatsink plate & air cooling
    • Product description
    • Specification
    • Dyno Tested data
    • Dimension
      • Commodity name: Marine ESC 150A
      • Commodity ID: esc150a

      Hobiba Marine ESC 150A range controllers are outstanding, fully programmable controllers for "brushless“ sensorless and sensor motors (BLCD motors) for models of cars, boats, submarines, airplanes, helicopters etc. <li>Protection Level: IP67 </li> <li>Max Continuous Current: 150A</li> <li>Max Working Current: 300A</li> <li>Bec: 5V/1.5A, 14V/200mA</li> <li>Lipo Battery Range: 30-84 VDC</li> <li>Signal Receivable: PPM, 1-2ms</li> <li>Cooling Solution: Heatsink plate & air cooling</li>

      Hobiba Marine ESC 150A range controllers are outstanding, fully programmable controllers of the highest quality for "brushless“ sensorless and sensor motors (BLCD motors) for models of cars, boats, submarines, airplanes, helicopters etc.

      Features

      • The controllers use powerful 16 bit processors with excellent computing performance to satisfy all requirements demands.
      • The controllers offer very high powert, up to 300A / 84V (= 20 Lipol), that is up to 25kW.
      • The controllers support multi-choice of model types (airplane, car, boat, helicopter – all in one) depends only on your settings.
      • The controllers feature innovative waterproof design, to increase water&dust-proofing performance in different climates.
      • Built-in ultra-powerful switch mode BEC with an output of 5V/1.5A BEC, supporting power for receiver or master controller.
      • When connected with PC via a USB port, controllers are able to transfer both the measured (logged) values data as well as warning and error notifications into the PC in real time.Also Firmware upgradeable online.
      • Multi-Cooling solutions available: Aluminum heat sinks, Water-cooling and Fan-cooling.
      • Multiple protection functions: Stall Protect, Over Current/Voltage/Temperature, Remote Control Signal Loss Protection, and Battery Low Voltage Protection.
      • Multiple Motor Timing Angle selections, support most of the brushless dc motors (both sensored and sensorless) on market.
      • Controllers support NiCd, NiMH, Lipol, Li-Ion, A123, acid (Pb) cells and possibly other new battery type (universal settings).
      • Support LED program card, LCD program box,OTA programmer (Note: optional) to set the parameters of the ESC.
      • Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.


      Factory Default Setting



      Programme Parameter Setup Parameter
      Operation Mode Forward Forward/ Backward
      Motor Rotate Direction CW CCW
      Forward Throttle Force 20% 40% 60% 80% 100%
      Reverse Throttle Force 20% 40% 60% 80% 100%
      Motor Timing Extremely Low Low Normal High Extremely High
      Stepping Accelerated Super Soft Soft Medium Speed High Speed Super High Speed
      Low Voltage of Battery Protection Unprotected 3.1V/Cell 3.2V/Cell 3.3V/Cell 3.4V/Cell
      Frequency Selection) High Low
      Minimum Throttle Value 1000
      Maximum Throttle Value 2000
      Medium Throttle Value 1500
      ESC Temperature Protection Turn Off 80C 90C 100C 110C 120C 130C 140C
      Demagnetization Compensation Turn Off Low High
      Starting Strength 1.2.3.4.6 9 12.  18 25 37 50 62 75
      Motor Shutdown and Locked Turn Off Open
      Motor Temperature Protection Turn Off 95C 100C 105C 110C 115C 120C 125C

      For more information, please contact sales@quanly.cn

      Keywords:
      • marine esc
      • Motor Controller
      • PWM Controller
      • Brushless Motor Controller
      • BLDC Motor Controller
      • Electric Controller
      • Speed Controller
      • DC Motor Controller
      • electric motor controller
      • brushless esc
      • Marine Controller
      • electric scooter controller
      • BLDC Motor Driver
      • control system
      • motor Control
    • Quanly marine Waterproof ESC Specification
      Model No 60v 150A-SL-WP 84V 150A-SL-WP
      Max Continuous Current（A) 150A 150A
      Max Working Current（A) 300A 300A
      BEC Output  (V/A) 5V/1.5A ,14V/200mA 5V/1.5A ,14V/200mA
      Compatible Motor D65L165,D70L165,D85L134 D65L165,D70L165,D85L134
      Working Voltage/Lipo Battery(cells) Range 30-60V/10-14S LiPo 42-84V/14-20S LiPo
      New Weight（kg） 1.0Kg 1.0Kg
      Wire Gauge to Motor 8 Awg 8 Awg

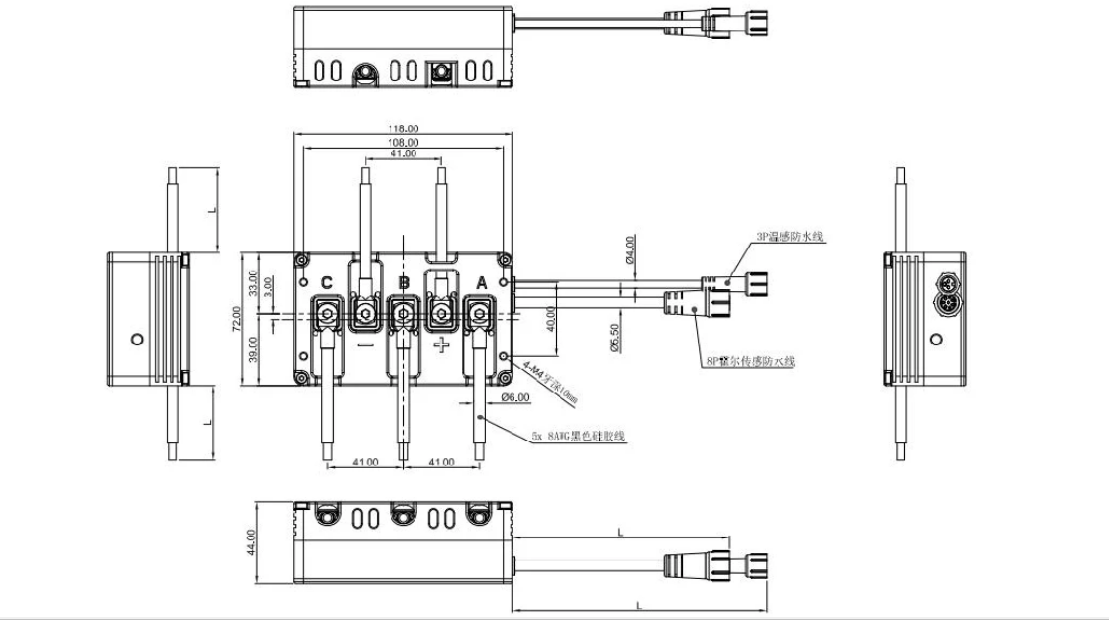

      Dimension（mm） L118*W72*H44
      Wires to Receiver 3 wires with waterproof connector
      Cooling Solution Heat-sink Plate & Air Cooling
      IP Grade IP67
      ESC High Temperature Alarm 100 Centigrade/Adjustable
      Motor High Temperature Alarm 100 Centigrade/Adjustable
      Receiver Signal PPM，1-2ms
