D90L96-WC Outrunner 23KW

D90L96 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for.

Diameters at 90mm

Configuration: 24N20P Outrunner

Speeds up to 14,070 rpm

Maximum output power up to 23KW

Maximum Torque output up to 26N*m

High-power density

Product description
Specification

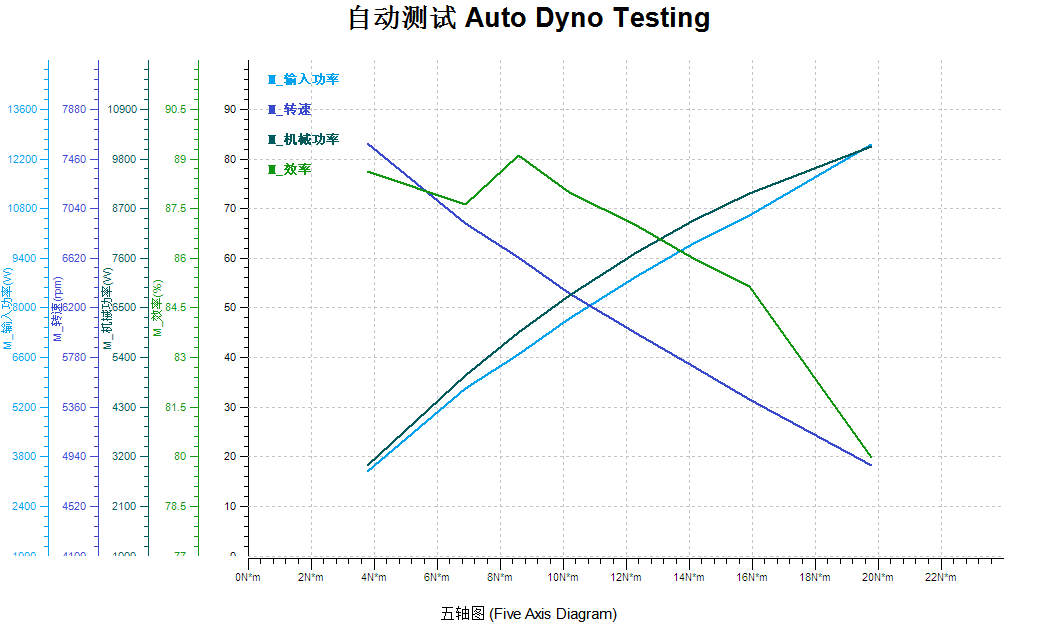

Dyno Tested data
Dimension

- Brand: Hobiba
- Commodity name: D90L96-WC Outrunner 23KW
- Commodity ID: 002
D90L96 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for. <li> Diameters at 90mm </li> <li> Configuration: 24N20P Outrunner </li> <li> Speeds up to 14,070 rpm </li> <li> Maximum output power up to 23KW </li> <li> Maximum Torque output up to 26N*m </li> <li> High-power density </li>
Quanly Outer rotor brushless motors use a compact design with an external rotor that provides smooth, stable rotation. These motors are capable of achieving higher torque than its counterpart inner rotor designs. The higher inertia produced by external rotor motors makes them ideal for applications that require lower noise and reliable performance at high speeds. Hobiba Brushless DC Electric Motor (BLDC) are designed for high performance gearless use. These water-cooling outrunner BLDC motors are ideal for applications where rapid acceleration and high speed are called for. Applications like efoil, e-surfboard, eSUP, hydrofoiling, boat, and racing competition ATV(All-Terrain Vehicle), Go-kart,QUad Bike...and so on.
- Diameters at 90mm
- Configuration: 24N20P Outrunner
- Speeds up to 14,070 rpm
- Maximum output power up to 23KW
- Maximum Torque output up to 26N*m
- High-power density
- Lower cost of ownership
Keywords:
- DC brushless motor
- Water-cooling motor
- surfboard motor
- BLDC motor
- Outrunner brushless motor
- Outrunner Motor
- SUP Motor
- efoil motor
- waterjet
- golf trolley motor
- Go Kart Motor
- electric motor
- external rotor motor

Variants	D90L96-335	D90L96-270	D90L96-225	D90L96-195	D90L96-170	D90L96-150
Winding Turn & Connection	4T	5T	6T	7T	8T	9T
Voltage Range(Cells of LiPo)	6-10S (20-42V)	8-12S (25-50.4V)	10-14S(32-58.8V)	10-16S (32-67.2V)	12-18S (40-75.6V)	12-22S(40-92.4V)
Max Spin Speed(RPM)	14,070	13,608	13,230	13,104	12,852	13,860
kV(RPM/V)	335	270	225	195	170	150
Kt（N*M/A)	0.0348	0.0425	0.0509	0.0596	0.0679	0.0764
No Loading Current at 8.4V (A)	6.4A	4.6A	3.4A	3.0A	2.5A	2.2A
Maximum Output Power(KW)	23.50	23.60	23.50	23.50	23.00	23.00
Peak Current(A)	820	660	550	480	415	370
Effeciency	92.00%	92.00%	92.00%	92.00%	93.00%	93.00%
Max Torque (N*M)	25.0	25.0	25.6	26.0	25.0	25.5
Rating Torque at 80% (N*M)	16.5	16.8	17.8	16.8	16.3	16.0
Weight(kg)	2.53	2.51	2.56	2.52	2.52	2.52
Configuration	24N/20P
Cooling Solution	Water Cooling + Air Cooling
Max Working Temperature	120︒C

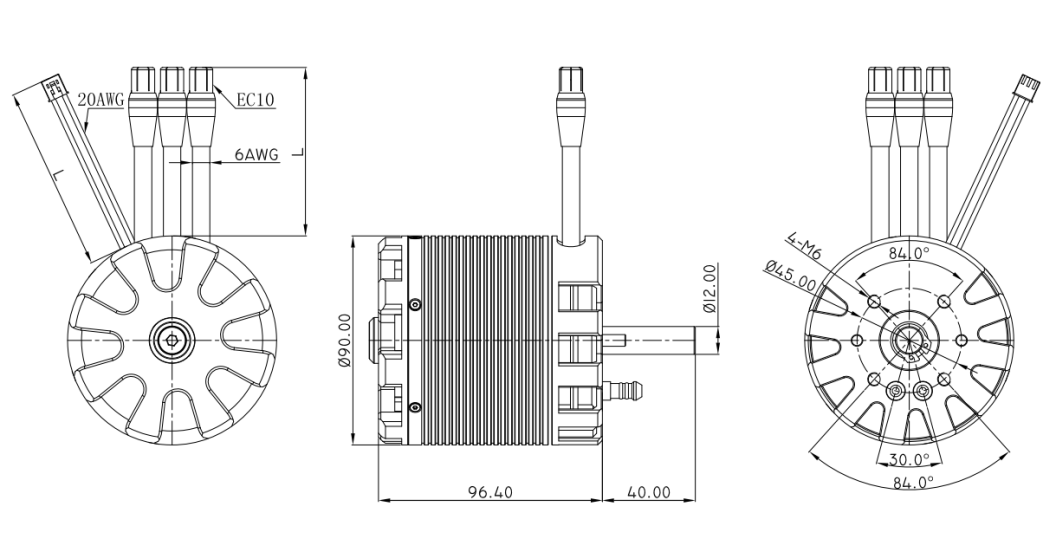

Dimension	D90*L96.4 mm
Shaft Extension	φ12*L40 mm
Lead Wires Extension	160±5MM
Insulation Voltage & Leak current	AC500V/10MA/3S
Life Span(hrs)	10,000

Item No.	C_Voltage (V)	C_Current (A)	C_Input Power(W)	C_ Power Factor	C_ Efficiency (%)	M_ Voltage(V)	M_ Current(A)	M_Input Power(W)	M_ Power Factor	M_ Frequency (Hz)	M_ Efficiency (%)	M_ Speed (rpm)	M_ Torque (N*m)	M_ Output Power(W)	Synthesis Efficiency (%)
0	60.310001	45.02	2696.659912	0.9931	99.245743	44.23	38.82	2676.320068	0.8999	2058.699951	82.552399	6176	3.416004	2209.366455	81.929741
1	60.220001	50.549999	3026.97998	0.9944	99.356453	44.150002	43.810001	3007.5	0.8976	2039.25	84.319603	6115	3.960004	2535.912109	83.77697
2	60.130001	56.48	3381.75	0.9958	99.438454	44.040001	49.200001	3362.76001	0.896	2018.469971	84.77877	6055	4.496004	2850.906494	84.302696
3	60.049999	61.459999	3675.820068	0.996	99.442574	43.939999	53.919998	3655.330078	0.8908	1998.439941	86.151451	5995	5.016004	3149.119873	85.671219
4	59.970001	66.599998	3981.149902	0.9968	99.631767	43.889999	58.84	3966.48999	0.8867	1980.170044	86.56884	5940	5.520004	3433.744385	86.250069
5	59.900002	72.050003	4302.600098	0.9971	98.196434	43.799999	63.099998	4225	0.8828	1960.400024	88.278046	5881	6.056004	3729.747559	86.685898
6	59.810001	76.870003	4585.439941	0.9973	94.302406	43.720001	66.860001	4324.180176	0.8541	1943.099976	91.912064	5828	6.512004	3974.443359	86.675293
7	59.740002	81.669998	4867.919922	0.9977	93.21682	43.66	70.779999	4537.720215	0.8478	1938.22998	93.342674	5778	7.000004	4235.629395	87.01107
8	59.66	87.230003	5193.200195	0.9979	92.321693	43.580002	75.440002	4794.450195	0.842	1939.77002	94.036591	5725	7.520004	4508.537598	86.81617
9	59.59	92.18	5482.049805	0.998	91.76239	43.509998	79.739998	5030.459961	0.837	1897.839966	94.979324	5669	8.048004	4777.896973	87.155304
