D85L165 Waterproof Brushless Inrunner 20kw

D85165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for.
  • Protection Level: IP68 Electric Motor
  • Diameters at 85mm
  • Configuration: 12N10P
  • Speeds up to 11,172 rpm
  • Maximum output power up to 20KW
  • Maximum Torque output up to 30N*m
  • Cooling Solution: Water cooling
    • Product description
    • Specification

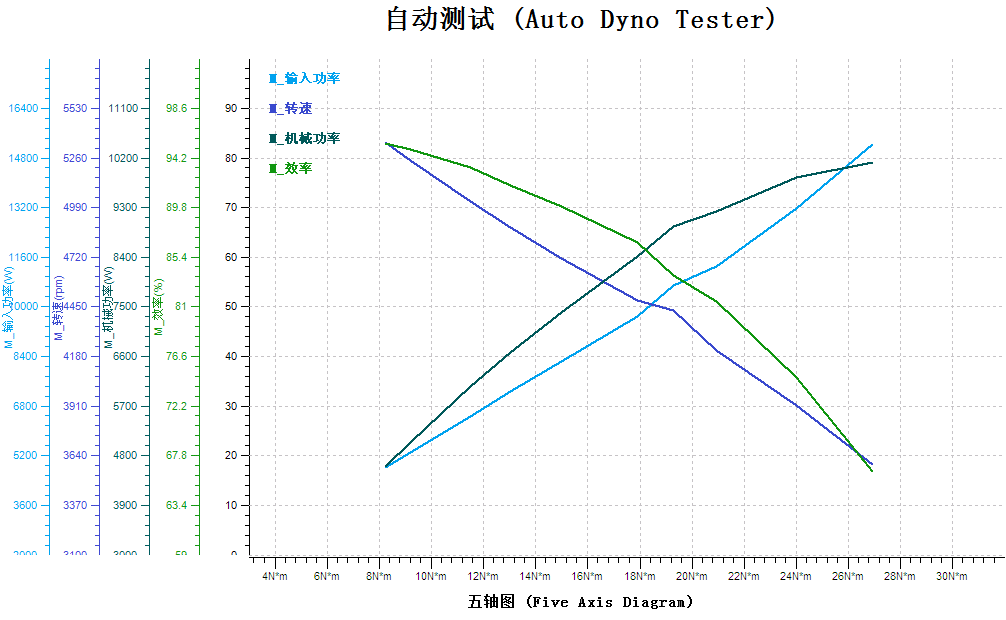

    • Dyno Tested data
    • Dimension
      • Brand: Hobiba
      • Commodity name: D85L165 Waterproof Brushless Inrunner 20kw
      • Commodity ID: 85165wp

      D85165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. <li>Protection Level: IP68 Electric Motor</li> <li>Diameters at 85mm</li> <li>Configuration: 12N10P</li> <li>Speeds up to 11,172 rpm</li> <li>Maximum output power up to 20KW</li> <li>Maximum Torque output up to 30N*m</li> <li>Cooling Solution: Water cooling</li>

      With an advanced 10-pole encapsulated core and 85mm diameter, this series compact DC motors deliver high torque up to 30 N.M with maximum output power at 20KW. Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can operated permanently underwater and have been widely used for high speed underwater thruster applications, like small boat motor, efoil, surfboard, SUP, POD drive, trolling motor. etc

      • Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
      • High performance: Our motors provide extremely high torques with a minimum of power consumption.
      • Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
      • Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
      • Compact: High efficiency and high power density realized in a compact design.
      • Long life: Double seal ball bearings with moisture resistant for long life.
      • Cooling solution: water-cooling & Air-Cooling.
      • Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion

      We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.

      • Sensor or sensorless
      • Winding Current
      • Shaft Options
      • Cable and Connector
      • Kv Ratings
      • Mounting Options
      • Encoder or Non



      Keywords:
      • inrunner
      • D85L165
      • marine motor
      • electric motor
      • waterproof motor
      • bldc motor
      • efoil motor
      • electric motor 20kw
      • surfboard motor
      • SUP motor
      • electric trolling motor
    • Variants D85L165-165 D85L165-143 D85L165-115 D85L165-95 D85L165-72
      Winding turn & connection 3T-D 2T-Y 2.5T-Y 3T-Y 4T-Y
      LiPO/voltage Range 8-16S  (28-67.2V) 10-18S (32-75.6V) 12-22S (38-92.4V) 12-28S (38-117.6V) 14-36S (45-151.2V)
      Max RPM 11,088  10,810  10,810  11,172  10,886
      Speed Constant KV(RPM/V) 165 143 115 95 72
       Torque Constant Kt (N*M/A) 0.0656  0.0757  0.0904  0.1085  0.1447
      NO Loading Current at 8.4V(A) 4.5  3.9  3.0  2. 5 2.1
      Maximum Output Power (KW) 20.0  19.8  19.5  19.0  18.6
      Peak Current (A)  470 410 330 310 210
      Effeciency 91.00% 91.00% 91.00% 92.00% 92.00%
      Max Torque at60% (N*M) 30.0  30.0  30.0  30.0  29.0
      Continuous working current(A) 220.0  185.0  150.0  125.0  95.0
      Weight(kg) 3.80  3.90  3.90  3.85  3.76
      Construction 12N/10P
      Cooling Solution water cooling
      Max working temperature 120ºC
      Dimension D85*L165 mm
      Shaft extension D10*L30 mm
      Lead wires extension 150±5MM
      Insulation voltage & leak current AC500V/10MA/3S
      Plug 10mm golden plug
      Life Span(hrs) 10,000

    • Item No. C_
      Voltage(V)      		 C_Current
      (A)      		 C_Input Power(W) C_
      Power Factor      		 C_
      Efficiency
      (%)      		 M_Voltage
      (V)      		 M_Current
      (A)      		 M_Input Power(W) M_
      Power Factor      		 M_
      Frequency
      (Hz)      		 M_
      Efficiency
      (%)      		 M_
      Speed
      (rpm)      		 M_Torque
      (N*m)      		 M_Output Power(W) Synthesis Efficiency(%)
      0 59.799999 66.379997 3965.899902 0.9992 98.342873 43.849998 58.82 3900.179932 0.8732 561.340027 92.454361 6424 5.359995 3605.886475 90.922279
      1 59.669998 91 5425.319824 0.9993 98.003441 43.82 83.459999 5317 0.8395 605.140015 92.748177 6084 7.739995 4931.42041 90.8964
      2 59.580002 109.879997 6541.970215 0.9992 97.538048 43.849998 103.220001 6380.910156 0.814 605.27002 91.914406 5846 9.579995 5864.975586 89.65152
      3 59.509998 125.199997 7444.700195 0.9992 97.223923 43.889999 119.879997 7238.029785 0.7943 621.25 91.226959 5660 11.139996 6603.034668 88.694435
      4 59.43 144.289993 8566.160156 0.999 96.82238 43.990002 141.369995 8293.959961 0.7701 655.940002 89.809494 5463 13.019996 7448.763184 86.955681
      5 59.330002 163.809998 9707.879883 0.9989 96.428574 44.07 164.059998 9361.169922 0.7477 648.599976 88.197044 5270 14.959995 8256.275391 85.04715
      6 59.200001 193.699997 11448.7002 0.9984 95.755493 44.200001 199.619995 10962.75977 0.7176 671.400024 85.512978 5001 17.899996 9374.582031 81.883377
      7 59.139999 207.320007 12238.62012 0.9981 95.376602 44.23 215.899994 11672.78027 0.7058 647.289978 83.987892 4886 19.159996 9803.72168 80.104797
      8 59.02 235.160004 13841.91992 0.9973 94.639404 44.32 249.899994 13099.91016 0.683 627.840027 80.736282 4667 21.639996 10576.38086 76.40834
      9 58.93 261.820007 15292.04981 0.9911 93.400948 44.369999 278.720001 14282.91992 0.667 628.659973 77.387184 4499 23.459995 11053.14941 72.280365
