D85L165 Water Cooled Brushless Inrunner 20kw
- Product description
- Specification
- Dyno Tested data

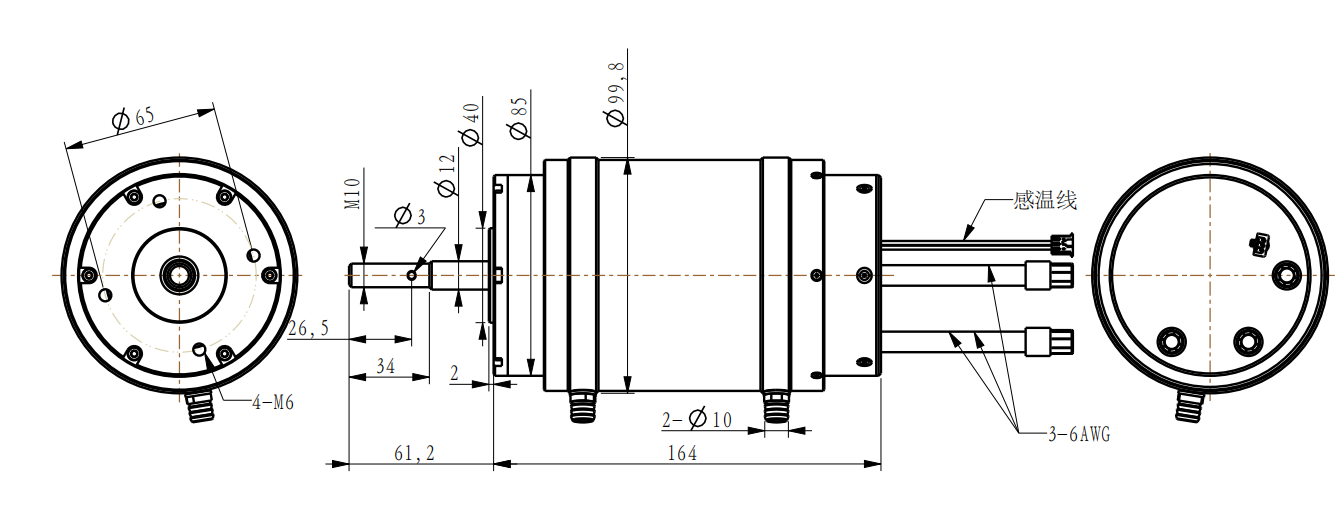

- Dimension
-
- Brand: Hobiba
- Commodity name: D85L165 Water Cooled Brushless Inrunner 20kw
- Commodity ID: 85165wc
D85165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. <li>Protection Level: IP64 Electric Motor</li> <li>Diameters at 85mm</li> <li>Configuration: 12N10P</li> <li>Speeds up to 11,172 rpm</li> <li>Maximum output power up to 20KW</li> <li>Maximum Torque output up to 30N*m</li> <li>Cooling Solution: Water cooling</li>
With an advanced 10-pole encapsulated core and 85mm diameter, this series compact DC motors deliver high torque up to 30 N.M with maximum output power at 20KW. Thanks to the modern sealing technology, these water-cooling motors are usually customized to fit into water-tight chamber shell to form a whole motor system, and are not expected to dip in water. They can be operated permanently underwater and have been widely used for high speed underwater thruster applications, like small boat motor, efoil, surfboard, SUP, POD drive motor, electric trolling motor. etc
- Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
- High performance: Our motors provide extremely high torques with a minimum of power consumption.
- Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
- Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
- Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life.
- Cooling solution: water-cooling & Air-Cooling.
- Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion
We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.
- Sensor or sensorless
- Winding Current
- Shaft Options
- Cable and Connector
- Kv Ratings
- Mounting Options
- Encoder or Non
Keywords:- watercooling motor
- electric motor
- brushless motor
- dc motor
- 20kw bldc motor
- 20kw motor
- marine motor
-
Variants D85L165-165 D85L165-143 D85L165-115 D85L165-95 D85L165-72 Winding turn & connection 3T-D 2T-Y 2.5T-Y 3T-Y 4T-Y LiPO/voltage Range 8-16S (28-67.2V) 10-18S (32-75.6V) 12-22S (38-92.4V) 12-28S (38-117.6V) 14-36S (45-151.2V) Max RPM 11,088 10,810 10,810 11,172 10,886 Speed Constant KV(RPM/V) 165 143 115 95 72 Torque Constant Kt (N*M/A) 0.0656 0.0757 0.0904 0.1085 0.1447 NO Loading Current at 8.4V(A) 4.5 3.9 3.0 2. 5 2.1 Maximum Output Power (KW) 20.0 19.8 19.5 19.0 18.6 Peak Current (A) 470 410 330 310 210 Effeciency 91.00% 91.00% 91.00% 92.00% 92.00% Max Torque at60% (N*M) 30.0 30.0 30.0 30.0 29.0 Continuous working current(A) 220.0 185.0 150.0 125.0 95.0 Weight(kg) 3.80 3.90 3.90 3.85 3.76 Construction 12N/10P Cooling Solution water cooling Max working temperature 120ºC Dimension D85*L165 mm Shaft extension D10*L30 mm Lead wires extension 150±5MM Insulation voltage & leak current AC500V/10MA/3S Plug 10mm golden plug Life Span(hrs) 10,000 -
