D83L95-WC Brushless Outrunner 15KW

D83L95 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for.
  • Diameters at 83mm
  • Configuration: 24n/20p
  • Speeds up to 16,400 rpm
  • Maximum output power up to 15KW
  • Maximum Torque output up to 15N*m
  • Cooling Solution: Water cooling
    • Product description
    • Specification

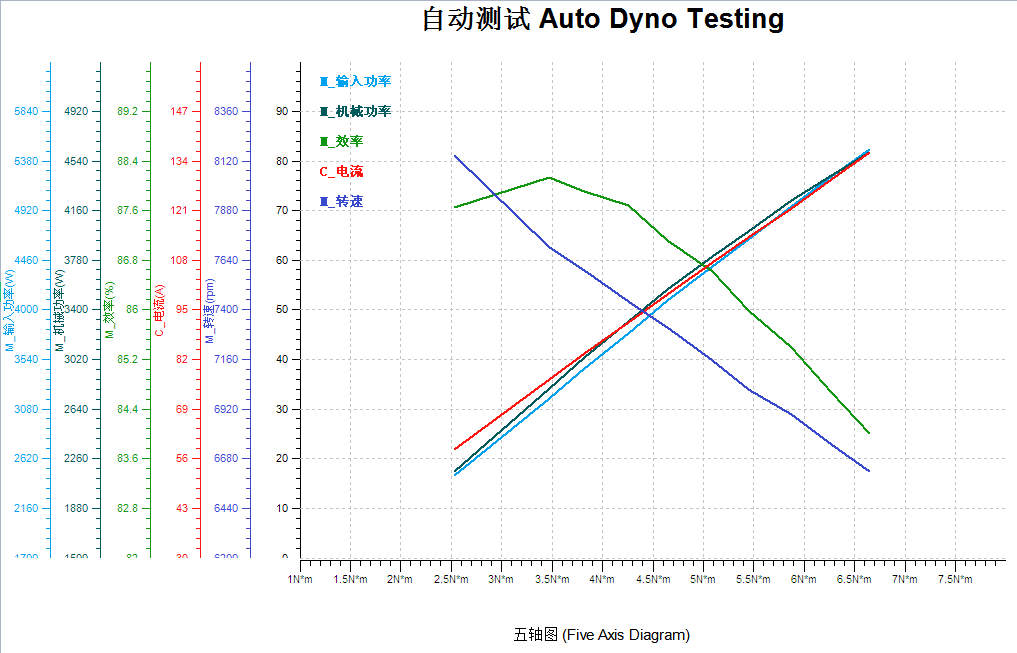

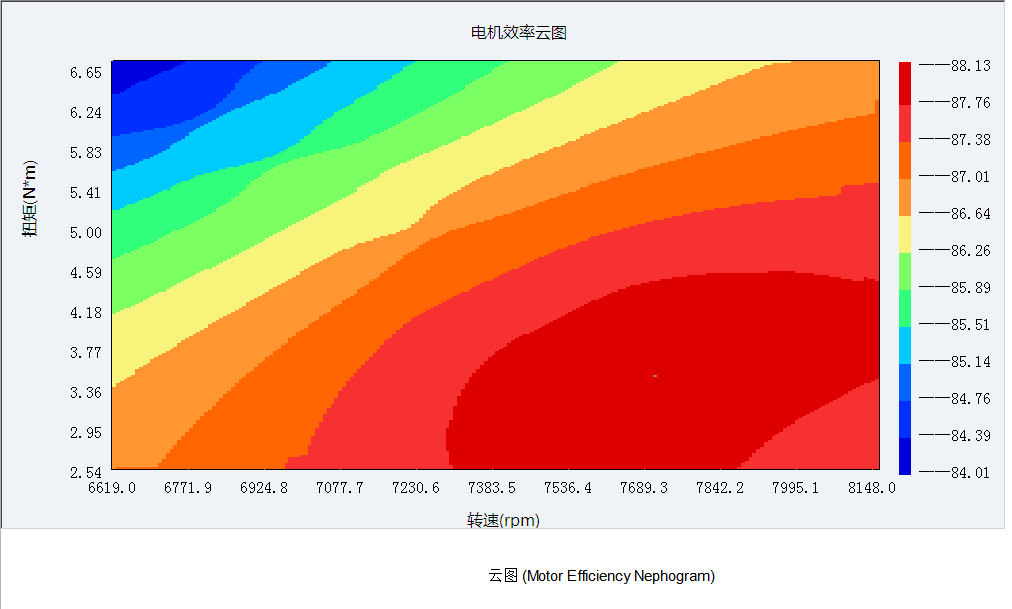

    • Dyno Tested data

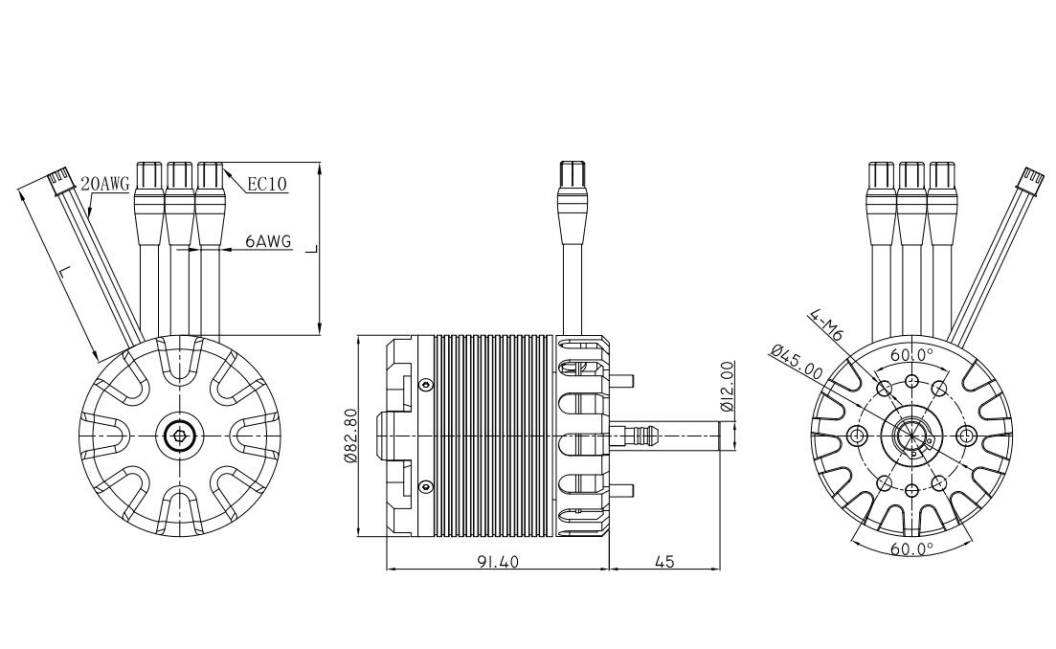

    • Dimension
      • Brand: Hobiba
      • Commodity name: D83L95-WC Brushless Outrunner 15KW
      • Commodity ID: 8395

      D83L95 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for. <li>Diameters at 83mm</li> <li>Configuration: 24n/20p</li> <li>Speeds up to 16,400 rpm</li> <li>Maximum output power up to 15KW</li> <li>Maximum Torque output up to 15N*m</li> <li>Cooling Solution: Water cooling</li>

      Quanly Outer rotor brushless motors use a compact design with an external rotor that provides smooth, stable rotation. These motors are capable of achieving higher torque than its counterpart inner rotor designs. The higher inertia produced by external rotor motors makes them ideal for applications that require rapid acceleration, lower noise and reliable performance at high speeds.  Applications like efoil, e-surfboard, eSUP, hydrofoiling, boat, and racing competition ATV(All-Terrain Vehicle), Go-kart,QUad Bike...and so on.

      • Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
      • High performance: Our motors provide extremely high torques with a minimum of power consumption.
      • Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient and smooth operation.
      • Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
      • Compact: High efficiency and high power density realized in a compact design.
      • Long life: Double seal ball bearings with moisture resistant for long life.
      • Cooling solution: water-cooling & Air-Cooling.
      • Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion
      Keywords:
      • d83l95
      • BLDC motor
      • Outrunner brushless motor
      • electric motor
      • outrunner motor
      • 15kw motor
      • ATV motor
      • electric motor for ATV
      • brushless dc motor
      • 20 pole motor
      • watercooling motor
      • external rotor motor
      • high power motor
      • high torque motor
    • Variants D83L95-400 D83L95-325 D83L95-270 D83L95-235 D83L95-205 D83L95-180
      Winding turn & connection 4T 5T 6T 7T 8T 9T
      (LiPo/voltage Range) 4-10S (14.8-42V) 6-12S (22.2-50.4V) 8-14S (29.6-58.8V) 8-16S (29.6-67.2V) 10-18S (37-75.6V) 10-20S (37-84V)
      Max Spin Speed (RPM) 16,380  16,380  15,876  16,128  15,876  15,960
      Speed Constance kV)(RPM/V) 400 325 270 235 205 180
      Kt(N*M/A)  0.0272  0.0348  0.0408  0.0476  0.0544  0.0612
      Current @8.4V without Loading(A) 5.5 4.3 3.8 2.7 2.4 2.2
      Maximum output power (KW) 15.6  15.3  15.2  15.0  15.5  15.6
      Peak current (A) 580 470 390 340 300 270
      Effeciency 88.00% 88.00% 89.00% 89.00% 89.00% 90.00%
      Max torque@60%)(N*M) 14.2  14.5  14.6  14.6  15.5  15.2
      Rating Torque@80% Efficiency (N*M)  11.0  10.8  9.8  9.8  11.6  11.2
      Weight(Kg) 1.90  1.91  1.90  1.91  1.92  1.91
      Construction 24N/20P
      Max working temperature 120ºC
      Dimension D82.8*L95 mm
      Shaft extension φ12*L40
      Lead wires extension 6 AWG x 300mm
      Insulation voltage & leak current AC500V/10MA/3S
      Plug 10.0mm plug
      Life Span (hrs) 10,000

    • Item No. C_Voltage
      (V)      		 C_Current
      (A)      		 C_Input Power(W) C_
      Power Factor      		 C_
      Efficiency
      (%)      		 M_Voltage
      (V)      		 M_Current
      (A)      		 M_Input Power(W) M_
      Power Factor      		 M_
      Frequency
      (Hz)      		 M_
      Efficiency
      (%)      		 M_
      Speed
      (rpm)      		 M_
      Torque
      (N*m)      		 M_
      Output Power(W)      		 Synthesis Efficiency
      (%)
      0 42.599998 58.380001 2487.530029 1 99.25106 30.959999 49.52 2468.899902 0.9298 1357.72998 87.647507 8148 2.536004 2163.929199 86.991081
      1 41.939999 76.699997 3216.5 1 98.800865 30.299999 66.220001 3177.929932 0.9146 1283.530029 88.132866 7703 3.472004 2800.800781 87.076042
      2 41.970001 83.5 3504.800049 1 98.669533 30.25 72.629997 3458.169922 0.9087 1273.469971 87.9049 7591 3.824004 3039.900879 86.735359
      3 41.880001 91.599998 3836.810059 1 98.549049 30.129999 80.379997 3781.139893 0.9015 1239.949951 87.687149 7439 4.256004 3315.57373 86.414848
      4 41.889999 99.190002 4154.680176 1 98.373398 30.08 87.720001 4087.100098 0.8943 1219.359985 87.11795 7315 4.648004 3560.5979 85.70089
      5 41.740002 107.330002 4479.529785 1 98.267456 29.91 95.720001 4401.919922 0.8876 1196.75 86.619919 7156 5.088004 3812.939453 85.119186
      6 41.619999 113.949997 4742 0.9999 98.126953 29.780001 102.400002 4653.180176 0.881 1173 85.987144 7013 5.448004 4001.136719 84.376564
      7 41.669998 121.68 5069.720215 1 97.915855 29.77 110.110001 4964.060059 0.8744 1149 85.400948 6894 5.872004 4239.354492 83.621071
      8 41.48 129.300003 5363.609863 0.9999 97.605164 29.6 117.580002 5235.160156 0.8684 1124.599976 84.662979 6748 6.272004 4432.242676 82.635445
      9 41.360001 136.300003 5637.450195 0.9999 97.295052 29.48 124.389999 5484.959961 0.8637 1115.290039 84.014122 6619 6.648004 4608.141113 81.741585
