D75L165 Brushless Inrunner 8kw
- Product description
- Specification
- Dyno Tested data

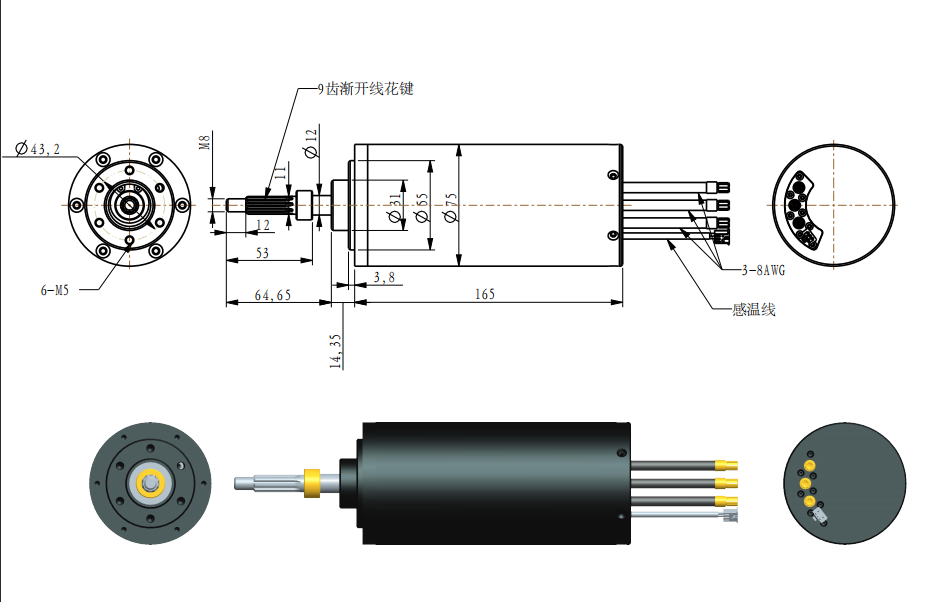

- Dimension
-
- Brand: Hobiba
- Commodity name: D75L165 Brushless Inrunner 8kw
- Commodity ID: 75165
D75L165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. <li>Protection Level: IP68 Electric Motor</li> <li>Diameters at 75mm</li> <li>Configuration: 12N/10P</li> <li>Speeds up to 12,000 rpm</li> <li>Maximum output power up to 8.8KW</li> <li>Maximum Torque output up to 140kg*cm</li> <li>Cooling Solution: Water cooling</li>
With an advanced 6-pole encapsulated core and 75mm diameter, this series compact DC motors deliver high torque up to 140 Kg*cm with peak power at 8.8KW. Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently underwater and applied in marine environments.
- Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
- High performance: Our motors provide extremely high torques with a minimum of power consumption.
- Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
- Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
- Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life.
- Cooling solution: water-cooling & Air-Cooling.
- Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion
We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.
Can be customized for
- Sensor or sensorless
- Winding Current
- Shaft Options
- Cable and Connector
- Kv Ratings
- Mounting Options
- Encoder or NonKeywords:- D75L165
- BLDC motor
- Inrunner brushless motor
- dc brushless motor
- boat motor
- marine motor
- waterproof electric motor
- electric motor
-
Motor P/N D75L165-235 D75L165-160 D75L165-145 D75L165-100 D75L165-74 Winding Turns 2T-D 3T-D 2T 3T 4T LiPo/ Voltage 5-12S(15-48.8V) 6-16S (18-75.6V） 8-20S (25-84V） 10-28S (32-117.6V） 10-38S(32-159.6V) Max RPM 11468 12096 12180 11760 11810 KV） 235 160 145 100 74 No Load Current at 8.4V 2.8A 2.6A 2.5A 2.3A 1.8A Max Power (KW） 8.7 8.7 8.6 8.6 8.8 Max Torque (Kg*cm) 138 139 143 140 139 Peak Current (A) 270 200 190 150 120 Max Efficiency >90% >90% 91% >92% >92% Net Weight (kg) 3.4 3.5 3.5 3.5 3.6 Construction 12N/10P Dimension(mm) D75*L165 Shaft Dimension D12*34mm+M8*25 Wire Length 1.5m Connector 10mm Life Span 10000H -
