D70L165 Waterproof Brushless Inrunner 13kw

D70L165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for.

Protection Level: IP68 Electric Motor

Diameters at 70mm

Configuration: 12N10P

Speeds up to 13,020 rpm

Maximum output power up to 13KW

Maximum Torque output up to 21N*m

Cooling Solution: Water cooling

Product description
Specification

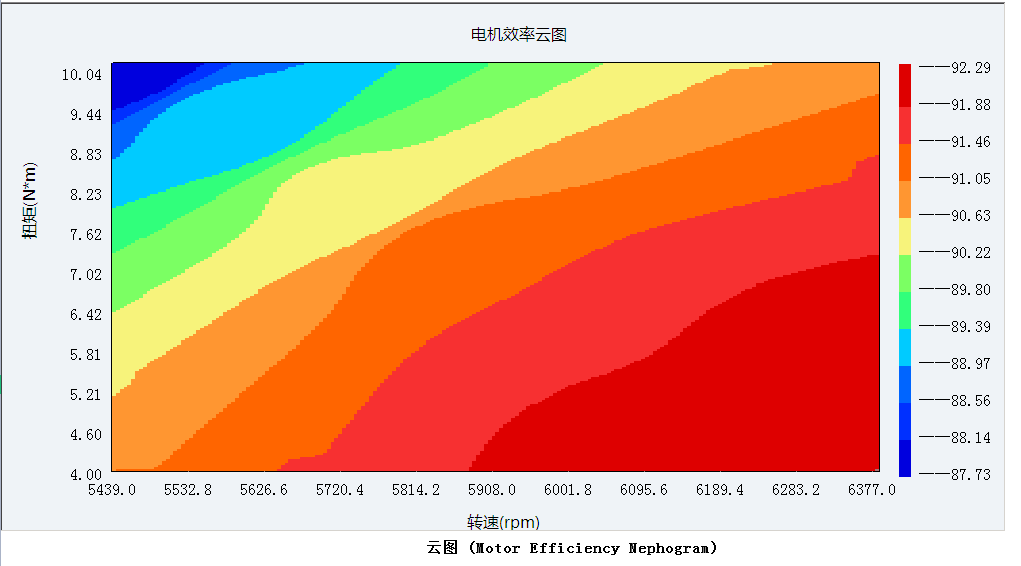

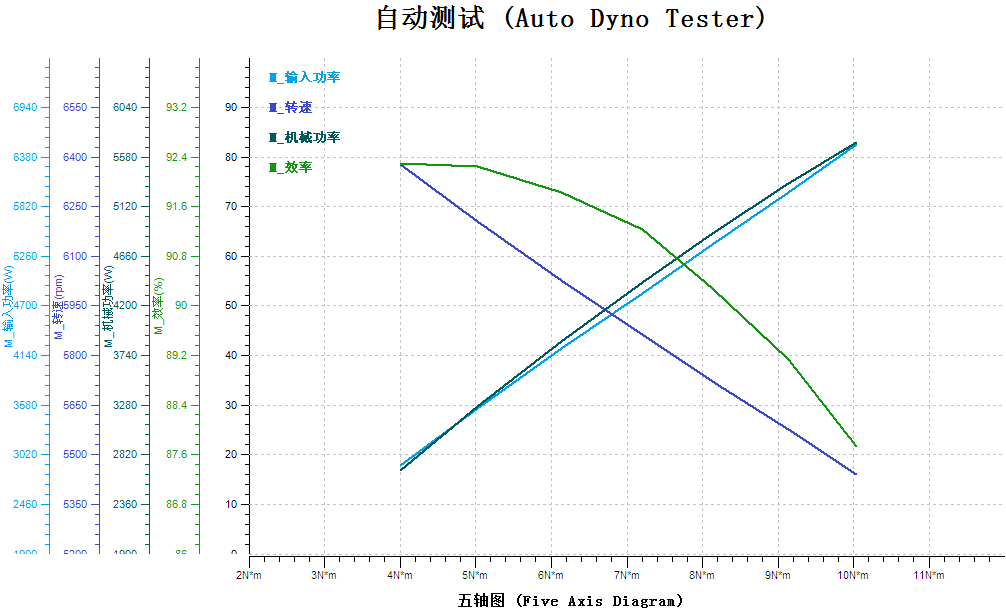

Dyno Tested data
Dimension

- Brand: Hobiba
- Commodity name: D70L165 Waterproof Brushless Inrunner 13kw
- Commodity ID: 70165wp
D70L165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. <li>Protection Level: IP68 Electric Motor</li> <li>Diameters at 70mm</li> <li>Configuration: 12N10P</li> <li>Speeds up to 13,020 rpm</li> <li>Maximum output power up to 13KW</li> <li>Maximum Torque output up to 21N*m</li> <li>Cooling Solution: Water cooling</li>
With an advanced 10-pole encapsulated core and 70mm diameter, this series compact DC motors deliver high torque up to 21 N.m with maximum output power at 13KW. Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently underwater and have been widely used for high speed underwater thruster in various water sports, like efoil, e-surfboard, eSUP, hydrofoiling, etc.
- Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
- High performance: Our motors provide extremely high torques with a minimum of power consumption.
- Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
- Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
- Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life.
- Cooling solution: water-cooling & Air-Cooling.
- Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion
We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.

Can be customized for
- Sensor or sensorless
- Winding current
- Shaft Options
- Cable and Connector
- Kv Ratings
- Mounting Options
- Encoder or Non
Keywords:
- D70L165
- Quanly motor
- BLDC motor
- Inrunner motor
- electric motor
- efoil motor
- surfboard motor
- sup motor
- waterproof motor

Variants	D70L165-170	D70L165-155	D70L165-125	D70L165-105	D70L165-90	D70L165-78
Winding turn & connection	3T-D	2T	2.5T	3T	3.5T	4T
Working Voltage	6-16S (18-75.6V)	8-20S (25-84V)	10-24S (32-100.8V)	10-28S (32-117.6V)	12-32S (36-134.4V)	12-38S (36-159.6V)
Max RPM	12,852	13,020	12,600	12,348	12,096	12,449
KV (RPM/V)	170	155	125	105	90	78
No Load Current @8.4V	2.4A	2.2A	2.1A	1.9A	1.7A	1.5A
Kt(N*M/A)	0.06977	0.0759	0.0949	0.1139	0.1328	0.1518
Max Power(KW)	12.8	13.0	13.0	12.8	12.6	12.5
Max Torque(N*M)	20.0	20.3	20.6	20.8	21.0	21.0
Continuous working current(A)	130	120	95	80	70	60
Peak Current (A)	300	270	230	190	170	150
Max Efficiency	90.0%	91.0%	91.0%	92.0%	92.0%	92.0%
Net Weight (kg)	3.2	3.3	3.3	3.2	3.1	3.1
Construction	12N/10P
Dimension	D70*L165 mm
Shaft Dimension	D1234mm+M825
Wire Length	1.5m
Connector	10mm
Working Life	10000H

Item No.	C_ Voltage(V)	C_ Current (A)	C_Input Power(W)	C_ Power Factor	C_ Efficiency (%)	M_Voltage (V)	M_ Current(A)	M_Input Power(W)	M_Power Factor	M_ Frequency (Hz)	M_ Efficiency (%)	M_ Speed (rpm)	M_ Torque (N*m)	M_ Output Power(W)	Synthesis Efficiency (%)
0	59.619999	48.759998	2906.169922	0.9998	99.592255	44.34	41.700001	2894.320068	0.9037	607.099976	92.29377	6377	4.000004	2671.2771	91.917442
1	59.52	59.880001	3563.330078	0.9998	99.313286	44.09	51.790001	3538.860107	0.8949	567.26001	92.250877	6205	5.024004	3264.629395	91.617371
2	59.400002	71.68	4256.950195	0.9998	99.048141	43.880001	62.77	4216.430176	0.8838	520.22998	91.835785	6026	6.136004	3872.191895	90.961647
3	59.299999	82.699997	4903.72998	0.9999	98.823341	43.720001	73.230003	4846.029785	0.874	535.650024	91.239464	5864	7.200004	4421.491699	90.165886
4	59.209999	92.519997	5477.52002	0.9999	98.572708	43.580002	82.720001	5399.339844	0.8648	523.780029	90.278549	5721	8.136004	4874.445801	88.990013
5	59.119999	102.900002	6081.72998	0.9998	98.402924	43.470001	92.900002	5984.600098	0.8557	544.820007	89.142754	5576	9.136004	5334.837402	87.719078
6	59.029999	112.5	6639.089844	0.9998	98.188011	43.389999	102.360001	6518.790039	0.8474	550.840027	87.72596	5439	10.040005	5718.670898	86.136368
