D65L76 Water Cooled Brushless Outrunner 6500w
D65L76 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for.
Diameters at 65mm
Configuration: 24N/20P
Speeds up to 16,800 rpm
Maximum output power up to 6700W
Maximum Torque output up to 9N*m
Cooling Solution: Water cooling
- Product description
- Specification

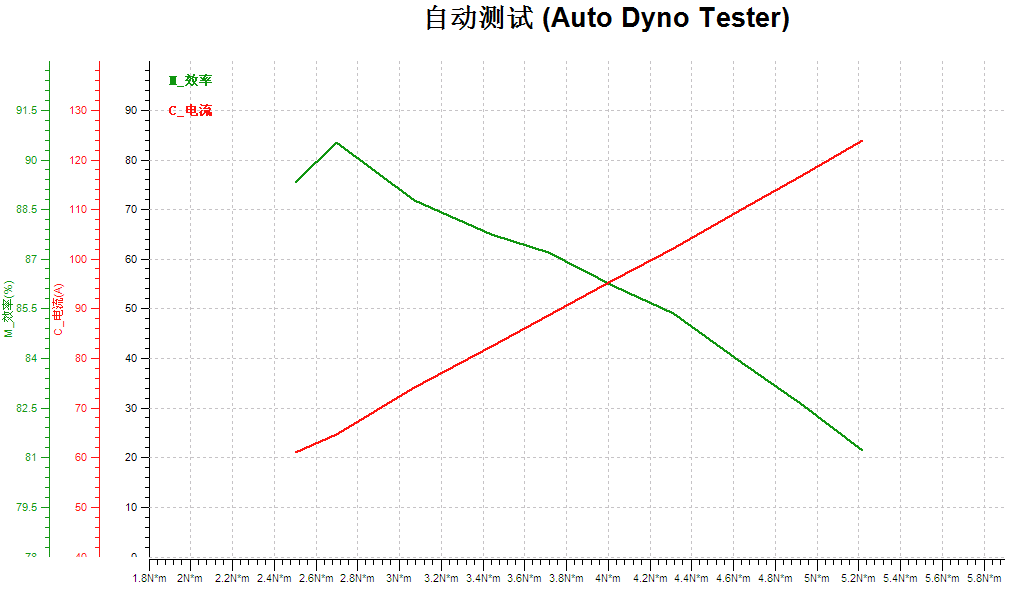

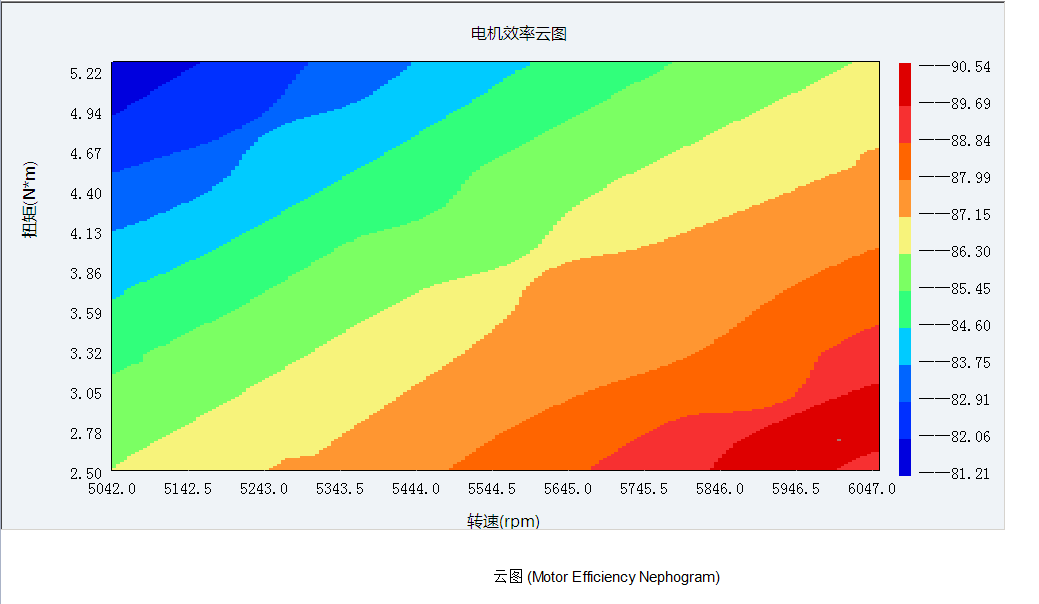

- Dyno Tested data
- Dimension
-
- Commodity name: D65L76 Water Cooled Brushless Outrunner 6500w
- Commodity ID: 6576wc
D65L76 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for. <li>Diameters at 65mm</li> <li>Configuration: 24N/20P</li> <li>Speeds up to 16,800 rpm</li> <li>Maximum output power up to 6700W</li> <li>Maximum Torque output up to 9N*m</li> <li>Cooling Solution: Water cooling</li>
Quanly Outer rotor brushless motors use a compact design with an external rotor that provides smooth, stable rotation. These motors are capable of achieving higher torque than its counterpart inner rotor designs. The higher inertia produced by external rotor motors makes them ideal for applications that rapid acceleration, lower noise and reliable performance at high speeds. Applications like efoil, e-surfboard, eSUP, hydrofoiling, boat, and racing competition ATV(All-Terrain Vehicle), Go-kart,QUad Bike...and so on.
- Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation
- High performance: Our motors provide extremely high torques with a minimum of power consumption.
- Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient & smooth operation.
- High Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
- Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life
- Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion
- Cooling solution: water-cooling & Air-Cooling.
Keywords:- d65l76
- outrunner motor
- 6kw bldc motor
- 20p motor
- electric motor
- bldc motor
-
Outrunner Motor D65L76 Spec D65L76-400 D65L76-350 D65L76-310 D65L76-278 D65L76-250 D65L76-230 D65L76-210 Winding turn & Connection 6T-D 7T-D 8T-D 9T-D 10T-D 11T-D 12T-D LiPo/Voltage Range) 6-10S (20-42V) 6-10S(20-42V) 6-12S(20-50.4V) 8-12S(26-50.4V) 8-14S(26-58.8V) 8-16S(26-67.2V) 10-16S(32-67.2V) Max Spin Speed (RPM) 16,800 14,700 15,624 14,011 14,700 15,456 14,112 Speed Constance kV(RPM/V) 400 350 310 278 250 230 210 Kt(N*M/A) 0.0282 0.0302 0.03452 0.03884 0.04315 0.04747 0.05178 No Loading Current at 8.4V (A) 3.2 2.5 2.2 2.0 1.8 1.5 1.5 Maximum output power(W) 6,500 6,600 6,700 6,500 6,600 6,700 6,500 Peak current (A) 335 285 255 230 190 160 160 Effeciency 89.00% 90.00% 91.00% 91.00% 92.00% 92.00% 92.00% Max torque at 60% (N*M) 8.5 8.4 8.7 8.6 8.9 9.0 9.0 Weight(g) 864 864 866 852 865 863 863 Construction 24N/20P Max Working Temperature 120ºC Dimension D65*L76 mm Shaft extension φ8*L36 Lead wires extension 200mm Insulation voltage & leak current AC500V/10MA/3S Plug 8.0mm plug Life Span (hrs) 10,000 -
Item No. C_Voltage
(V)C_Current
(A)C_Input Power(W) C_
Power FactorC_
Efficiency
(%)M_
Voltage
(V)M_
Current(A)M_Input Power(W) M_
Power FactorM_
Frequency
(Hz)M_
Efficiency
(%)M_
Speed
(rpm)M_
Torque
(N*m)M_Output Power(W) Synthesis Efficiency
(%)0 29.82 61.150002 1821.040039 0.9987 97.469574 21.42 51.630001 1774.959961 0.9264 305.040009 89.336418 6047 2.504004 1585.685669 87.075829 1 29.76 64.650002 1920.300049 0.9981 97.323334 21.379999 54.73 1868.900024 0.9223 302.359985 90.535904 5993 2.696004 1692.025513 88.112556 2 29.610001 74.099998 2192.47998 0.9991 97.238739 21.26 63.419998 2131.939941 0.913 294.399994 88.774399 5883 3.072004 1892.616943 86.323112 3 29.48 82.540001 2430.580078 0.9987 97.043915 21.16 71.129997 2358.72998 0.9048 287.540009 87.758347 5746 3.440004 2069.982422 85.164131 4 29.4 88.660004 2602.129883 0.9983 96.793396 21.1 76.800003 2518.689941 0.8977 282.570007 87.217003 5651 3.712004 2196.72583 84.420296 5 29.299999 95.93 2803.02002 0.9973 96.66217 21 83.559998 2709.459961 0.8911 280.570007 86.179794 5530 4.032004 2335.00708 83.303261 6 29.219999 102.199997 2974.899902 0.9961 96.426437 20.940001 89.389999 2868.590088 0.8849 271.200012 85.36747 5423 4.312004 2448.842773 82.316811 7 29.120001 110.129997 3188.179932 0.9941 96.129768 20.85 96.769997 3064.790039 0.877 264.549988 83.88755 5291 4.640004 2570.977295 80.640907 8 29.02 116.809998 3362 0.9918 95.913742 20.76 102.959999 3224.620117 0.8708 258.600006 82.639465 5172 4.920004 2664.808838 79.262604 9 28.9 124 3544.800049 0.9888 95.669998 20.67 109.470001 3391.310059 0.8651 252.169998 81.211098 5042 5.216004 2754.120117 77.694656 -
