D65L161 Waterproof Brushless Inrunner 10kw
- Product description
- Specification

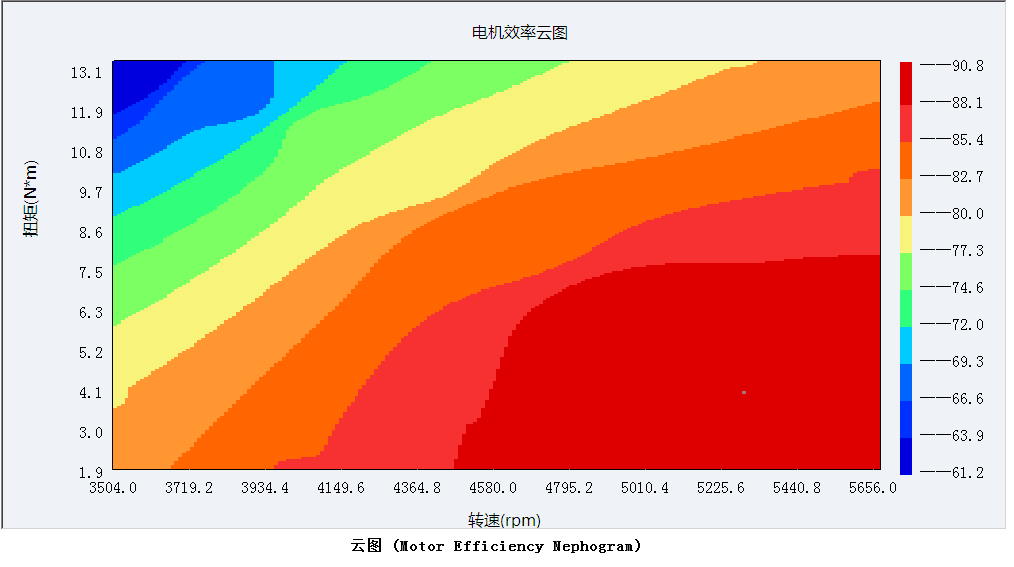

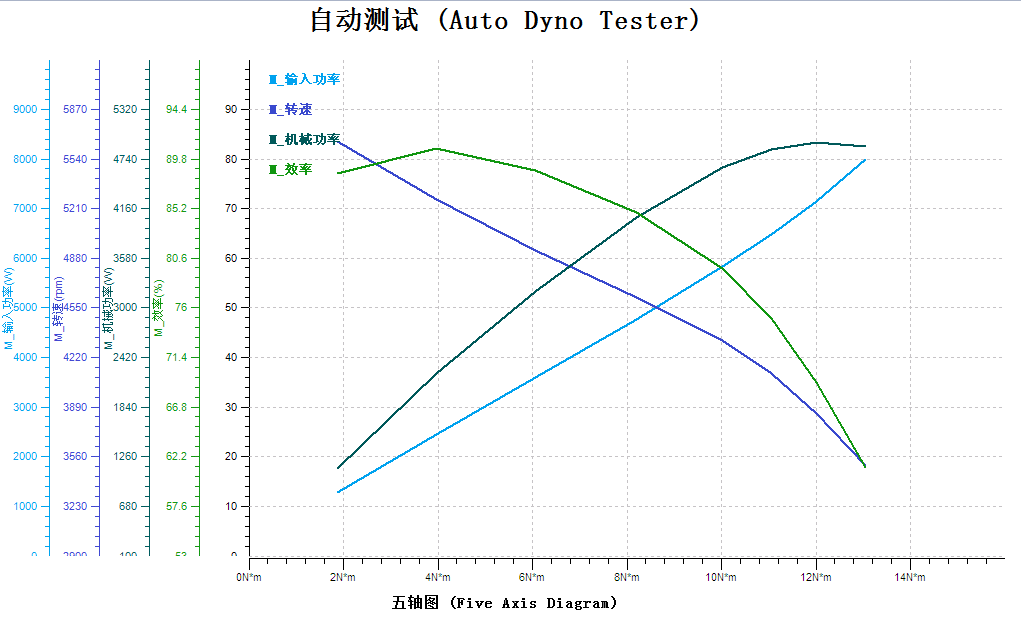

- Dyno Tested data
- Dimension
-
- Brand: Hobiba
- Commodity name: D65L161 Waterproof Brushless Inrunner 10kw
- Commodity ID: 65161wp
D65L161 BLDC motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. <li>Protection Level: IP68 Electric Motor</li> <li>Diameters at 65mm</li> <li>Configuration: 18N6P</li> <li>Speeds up to 12,768 rpm</li> <li>Maximum output power up to 11KW</li> <li>Maximum Torque output up to 15.8N*m</li>
Hobiba D65L161 BLDC motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. With an advanced 6-pole encapsulated core and 65mm diameter, this series compact DC motors deliver high torque up to 16 N*m with peak power at 11KW. Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently underwater and have been widely used for various waterscrafts, like efoil, e-surfboard, eSUP, hydrofoiling, POD drive, Jetboard, etc
-
Robust & durable: Outer shell in black anodizing aluminum alloy, improve conductive heat transfer, prevent corrosion and oxidation, therefore extending motor life and improving reliability.
-
High performance: Our motors provide extremely high torques with a minimum of power consumption.
-
Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
-
Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
-
Higher on power to weight ratio and torque to weight ratio.
-
Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life
-
Cooling solution: water-cooling & Air-Cooling.
-
Shaft in SS316 Stainless Steel: withstand redial/axile stree,and work in the sea water against corrosion
We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.
Can be customized for- Sensor or sensorless
- Winding Current
- Shaft Options
- Cable and Connector
- Kv Ratings
- Mounting Options
- Encoder or Non
Keywords:- D65L161
- Quanly motor
- BLDC motor
- Inrunner motor
- electric motor
- brushless dc motor
- efoil motor
- electric trolling motor
- boat motor
- underwater motor
- Submersible Motor
- efoil
-
Variants D65L161-150 D65L161-125 D65L161-95 D65L161-76 Winding Turn & Connection 2.5T 3T 4T 5T Working Voltage Range 5-22S (16-84V) 6-24S(20-100.8V) 8-32S (25-134.4V) 10-40S (32-168V) Max RPM 12,600 12,600 12,768 12,768 Speed Constant KV(RPM/V) 150 125 95 76 No-load Current@8.4V without Loading) 2.6A 2.0A 1.5A 1.2A Torque Constant Kt(N*M/A) 0.06678 0.07881 0.09778 0.12189 Max Power@max Voltage(KW) 11.2 11.0 10.8 10.6 Max Torque(N*M) 15.8 15.6 15.4 15.2 Peak Current(A) 245 220 170 140 Continuous Working Current (A) 80 70 60 50 Max Efficiency 91.0% 91.0% 92.0% 92.0% Weight(kg) 2.5 2.5 2.5 2.5 Construction 18N/6P Dimensions (Dimension) D65*L160 mm Shaft Dimension D10*30mm Lead wires extension 8AWGx2m Connection plug (Plug) 8.0mm plug Working Life 10,000H -
Item No. C_Voltage(V) C_Current(A) C_Input Power(W) C_Power Factor C_Efficiency(%) M_Power Factor M_Frequency(Hz) M_Efficiency(%) M_Speed(rpm) M_Torque(N*m) M_Output Power(W) Synthesis Efficiency(%) 0 60.119999 21.75 1308.589966 1 97.299385 0.9235 282.829987 88.482735 5656 1.864004 1126.606445 86.093163 1 60 41.779999 2506.629883 0.9997 98.075905 0.9018 263.660004 90.764687 5273 3.960004 2231.358887 89.01828 2 59.91 61.27 3665.280029 0.9985 98.213509 0.8697 246.610001 88.781036 4932 6.064004 3195.939697 87.194969 3 59.810001 81.769997 4871.870117 0.9961 98.032784 0.8383 231.130005 84.863815 4621 8.208004 4053.121094 83.194359 4 59.73 100.440002 5951.060059 0.992 97.94944 0.8151 216.800003 79.680176 4336 10.024004 4644.581055 78.04628 5 59.66 112.43 6621.560059 0.9872 97.787376 0.8054 205.570007 75.028145 4112 11.056005 4858.109863 73.368057 6 59.619999 125.57 7323.52002 0.9782 97.63652 0.8 192.350006 69.06424 3846 12.016005 4938.390137 67.431923 7 59.560001 143.860001 8189.569824 0.9558 97.53418 0.7969 175.25 61.202972 3504 13.056005 4888.666992 59.693821 -
