D65L120 Water-cooled Brushless Inrunner 4kw
- Product description
- Specification

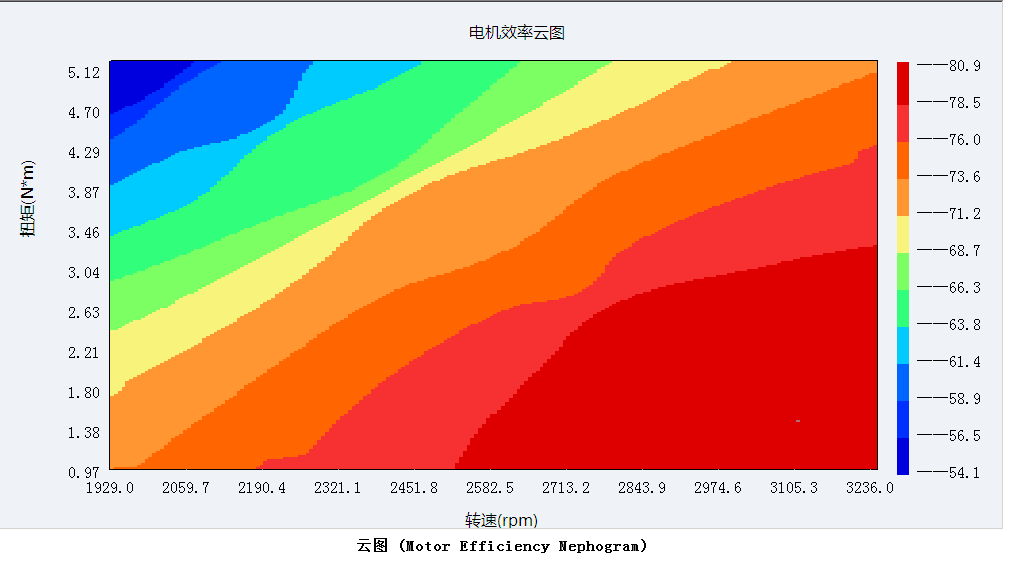

- Dyno Tested data
- Dimension
-
- Brand: Hobiba
- Commodity name: D65L120 Water-cooled Brushless Inrunner 4kw
- Commodity ID: 65120wc
This series motors are designed for high performance gearless use, ideal for applications where rapid acceleration and high speed are called for, like efoil, e-surfboard, eSUP, hydrofoiling, trolling motor, etc <li>Protection Level: IP64 Electric Motor</li> <li>Diameters at 65mm</li> <li>Configuration: 18N/6P</li> <li>Speeds up to 12,000 rpm</li> <li>Maximum output power up to 4KW</li> <li>Maximum Torque output up to 95kg*cm</li> <li>Cooling Solution: Water cooling</li>
Hobiba Brushless DC Electric Motor (BLDC) are designed for high performance gearless use. These BLDC motors are ideal for applications where rapid acceleration and high speed are called for. With an advanced 6-pole encapsulated core and 65mm diameter, this compact DC motors deliver high torque up to 95kg*cm max. with maximum 4KW output power. Thanks to the modern sealing technology, these water-cooling motors are usually customized to fit into water-tight chamber shell to form a whole motor system, and are not expected to dip in water. They can be operated permanently underwater and have been widely used for high speed underwater thruster in various water sports, like efoil, e-surfboard, eSUP, hydrofoiling, trolling motor, etc
Can be customized for
- Sensor or sensorless
- Winding Current
- Shaft Options
- Cable and Connector
- Kv Ratings
- Mounting Options
- Encoder or NonKeywords:- quanly motor
- d65l120
- efoil motor
- marine motor
- pod drive motor
- waterproof motor
- bldc motor
- electric motor 4kw
- brushless motor
- dc motor
- electric trolling motor
- pod drive motor
-
Model P/N D65L120-120 D65L120-103 D65L120-90 D65L120-80 Construction 18N/6P 18N/6P 18N/6P 18N/6P Winding Turn & Connection 6T 7T 8T 9T Voltage Range 20-100 20-120V 20-130V 20-150V Max Spin Speed(RPM) 12000 12000 12000 12000 kV (RPM/V) 120 103 90 80 Current at 8.4V without Loading (A) 2.0 1.5 1.5 1.2 Max Power (KW) 4.0 3.8 3.8 3.5 Kt(N*M/A) 0.09038 0.10544 0.12051 0.13557 Peak Current (A) 110 95 80 75 Continous Working Current (A) 45 38 33 30 Max Torque at 60% (N*M) 80kg*cm 85kg*cm 85kg*cm 95kg*cm Max Effeciency >91% >91% >91% >91% Weight (Kg) 1.5 1.5 1.5 1.5 Dimension D65*L120 D65*L120 D65*L120 D65*L120 Shaft Extension D10*30mm D10*30mm D10*30mm D10*30mm Lead Wires Extension 8AWGx2m 8AWGx2m 8AWGx2m 8AWGx2m Plug 8.0mm plug 8.0mm plug 8.0mm plug 8.0mm plug Life 10000H 10000H 10000H 10000H -
C_
Current
(A)C_Input Power(W) C_
Power FactorC_
Efficiency
(%)M_
Voltage
(V)M_
Current
(A)M_Input Power(W) M_
Power FactorM_
Frequency
(Hz)M_
Efficiency
(%)M_
Speed
(rpm)M_Torque
(N*m)M_Output Power(W) Synthesis Efficiency
(%)11.62 420.9 0.9661 98.91186 27.34 9.24 416.32 0.9518 161.76 78.95785 3236 0.970001 328.7173 78.098671 15.96 589.37 0.9858 98.91749 27.33 13.12 582.99 0.9387 154.66 80.93373 3103 1.452 471.8355 80.05761 20.17 748.55 0.9918 98.91791 27.38 16.86 740.45 0.9261 148.5 80.65354 2981 1.913001 597.1992 79.7808 24.77 918.88 0.9928 98.84534 27.38 21 908.27 0.9125 146.3 79.15787 2844 2.414001 718.9672 78.243858 29.9 1104.01 0.9897 98.63678 27.36 25.64 1088.96 0.8963 159.35 75.97777 2690 2.937001 827.3674 74.942024 34.7 1272.9 0.9844 98.57569 27.36 29.96 1254.77 0.8836 155.87 72.55707 2542 3.420001 910.4243 71.523628 43.73 1579.16 0.9716 98.35608 27.4 37.9 1553.2 0.8635 138.81 65.40015 2285 4.245001 1015.795 64.32502 48.38 1732.45 0.9645 98.24873 27.4 41.86 1702.11 0.8569 131.33 60.81369 2139 4.621001 1035.116 59.748672 55.04 1950.65 0.9559 98.03194 27.4 47.39 1912.26 0.8501 113.54 54.05587 1929 5.117001 1033.689 52.99202
