D57115 1/5 Brushless RC Car Motor
- Product description

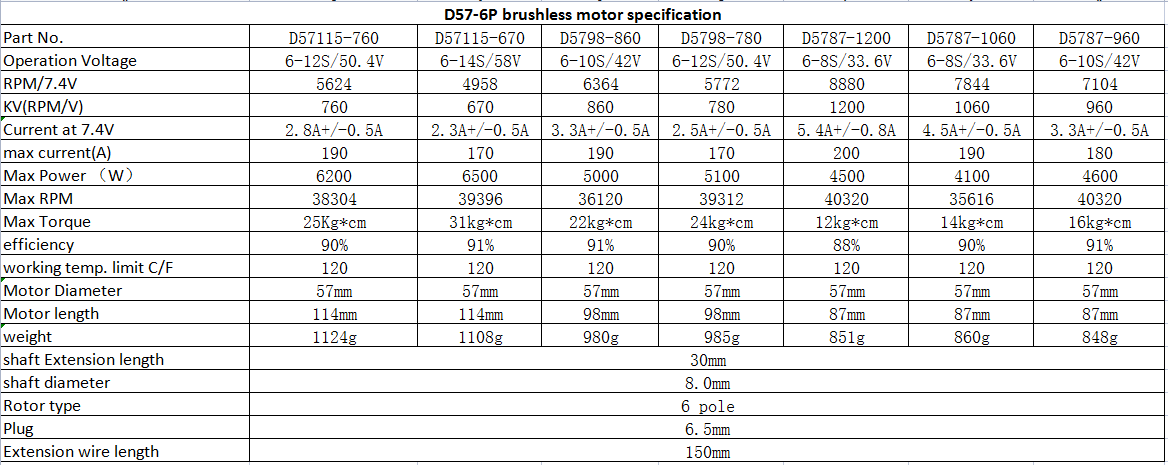

- Specification

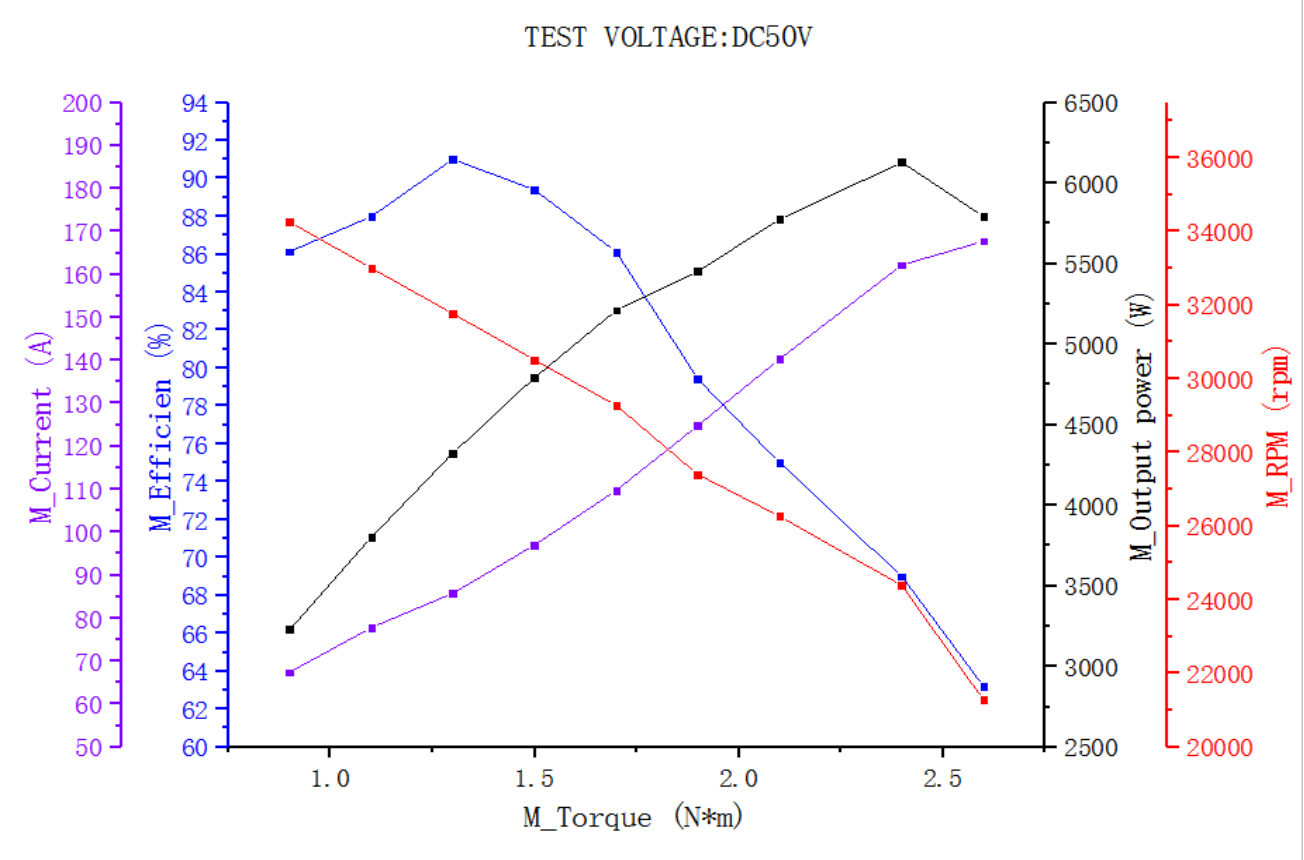

- Dyno Tested data
- Dimension
-
- Commodity name: D57115 1/5 Brushless RC Car Motor
- Commodity ID: D57115
<li> Pole: 6 </li> <li> KV (No-load): 750KV </li> <li> Max. Output Power: 6500 W </li> <li> Current at the point of M.O.P: 200 A </li> <li> Motor Diameter: 57mm </li> <li> Shaft Diameter: 8.0mm </li> <li> LiPo Cells: 6s-14s </li> <li> Application: 1/5th RC Vehicles, Truck/Dragster </li>
S-Power Series motor for 1/5 RC car
Hobiba Technology introduces new advanced motor design and innovative technology of 6 pole sensered and sensorless moter with stagger magnets rotor design and the sensor module with a extra magnets for hall sensor to detect the phase.The 6 pole high performance competition sensor and sensorless brushless motor is designed for 1/5 RC car, featuring more smooth power output, higher torque and better efficiency, This motor can generate more smooth punch than 4 pole motor when the car is getting start, so the Car start very steady and fast. The cases of all motors are CNC machined with high quality aluminum alloy and anodize processed for dust-free in water. The stators and magnets are made of the most qualified and advanced materials. All these make our motors invariably rank among the world's leading class in this industry.
The S-power system motor have two different diameter D65 & D57 with different length, we can also make some winding modification for the customer who need higher/lower RPM according to their battery voltage, you always can rely on us for your 1/5 Car projects.Keywords:- rc motor
- RC car model
- 1/5 scale brushless rc motor
- RC 1/5 Scale Motor
- brushless motor
- RC truck motor
- brushless rc motor
- RC Electric Motor
- RC Brushless Motor
-
-
