D115L56 Axial Flux Motor 18kw

D115L56 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for.
  • Diameters at 115mm
  • Configuration:24N/20P
  • Speeds up to 11,000 rpm
  • Maximum output power up to 18.8KW
  • Maximum Torque output up to 26N*m
  • Cooling Solution: Water cooling
    • Product description
    • Specification

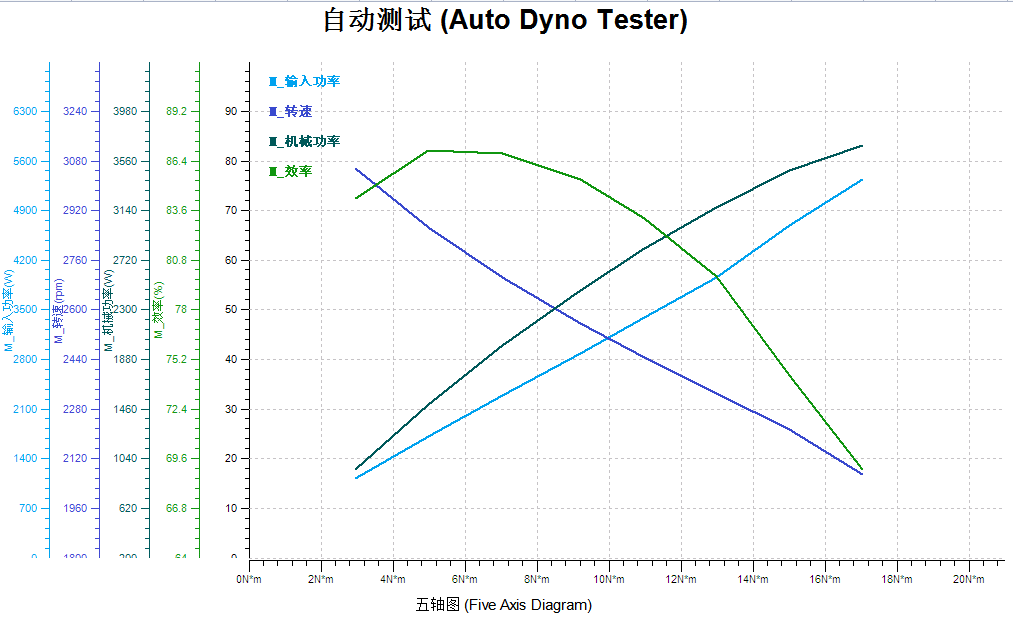

    • Dyno Tested data

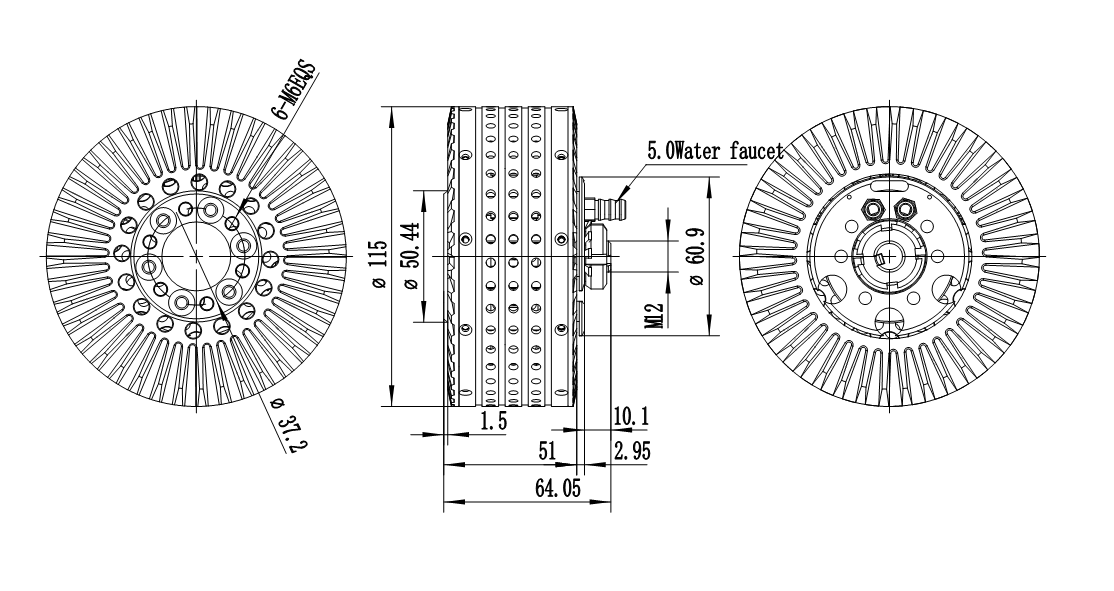

    • Dimension
      • Brand: Hobiba
      • Commodity name: D115L56 Axial Flux Motor 18kw
      • Commodity ID: 11556

      D115L56 Outrunner Brushless Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for. <li>Diameters at 115mm</li> <li>Configuration:24N/20P</li> <li>Speeds up to 11,000 rpm</li> <li>Maximum output power up to 18.8KW</li> <li>Maximum Torque output up to 26N*m</li> <li>Cooling Solution: Water cooling</li>

      Quanly 's 'cool' motor technology, significantly boosts torque and sustained power output while being compacter, smaller, lighter and cheaper to manufacture than other competitor motor, widely used in electric vehicles, EVs, motorbikes, etc.



      Can be customized for

      • Sensor or sensorless
      • Winding Current
      • Shaft Options
      • Cable and Connector
      • Kv Ratings
      • Mounting Options
      • Encoder or Non
      Keywords:
      • D115L56
      • axial flux motor
      • BLDC motor
      • outrunner motor
      • quanly motor
      • spoke motor
      • pancake motor
    • Axial flux Outrunner Motor D115L56 Specification
      Model P/N D115L56-220 D115L56-110 D115L56-54
      Winding & Turn 6T 12T 25T
      LiPo/Voltage Range 6-12S (22-48.8V) 12-24S(40-100.8V) 14-48S (48-201.6V)
      Max Spin Speed (RPM) 11,000  11,000  10,800
      kV Constant (RPM/V) 220 110 54
      Kt Constant (N*M/A) 0.0478 0.0975 0.1861
      Current at 8.4V without Loading (A) 7.5 7.0  6.2
      Max Power (KW) 17.6 18.8 18.5
      Peak Current (A) 600 300 150
      Efficiency  90% 91% 91%
      Max Torque at 60% (N*M) 26 26 26
      Rating Power at 80% efficiency(KW) 11.6 12.4 12.8
      Rating Torque at 80% (N*M) 15.5 16.2 16
      Weight (KG) 4.3 4.2 4.3
      Configuration 24N/20P
      Cooling Solution water cooling +air cooling
      Dimension D115*L56 mm
      Max Working Temperature 120°C
      Insulation Voltage & Leak Current AC500V/10MA/3S
      Shaft Extension  (mm) D15*L30
      Lead Wires Extension 6AWGx300 mm
      Plug 10.0mm plug
      Life Span 8,000 Hrs

    • Item No. C_
      Voltage
      (V)      		 C_
      Current
      (A)      		 C_Input Power
      (W)      		 C_
      Power Factor      		 C_
      Efficiency
      (%)      		 M_
      Voltage
      (V)      		 M_
      Current
      (A)      		 M_
      Input Power
      (W)      		 M_
      Power Factor      		 M_
      Frequency
      (Hz)      		 M_
      Efficiency
      (%)      		 M_
      Speed
      (rpm)      		 M_
      Torque
      (N*m)      		 M_Output Power(W) Synthesis Efficiency(%)
      0 49.61 43.47 2157.26 1 98.06142 36.77 37.63 2115.44 0.8827 712.87 84.86113 4277 4.008004 1795.186 83.216034
      1 49.45 60.72 3002.16 0.9999 97.72465 36.5 54.16 2933.85 0.8567 675.34 86.41264 4051 5.976004 2535.218 84.446449
      2 49.27 80.38 3958.32 0.9995 97.34837 36.38 74.12 3853.36 0.8251 637.51 85.73987 3825 8.248004 3303.866 83.46637
      3 49.13 95.77 4701.5 0.9992 96.93459 36.34 90.41 4557.38 0.8009 609.24 84.12184 3655 10.01601 3833.752 81.543167
      4 48.96 113.98 5573.83 0.9988 96.39727 36.36 110.44 5373.02 0.7724 580.13 81.74154 3481 12.048 4391.989 78.796616
      5 48.77 137.34 6586.28 0.9834 95.62212 36.43 135.75 6297.94 0.7351 551.32 76.9617 3306 14.00001 4847.001 73.5924
      6 48.5 160.17 7742.6 0.9969 94.88143 36.41 165.22 7346.29 0.7049 510.76 71.79515 3065 16.43201 5274.28 68.12027
      7 48.18 191 9150.34 0.9943 93.50942 36.3 204.44 8556.43 0.6658 463.97 62.6908 2785 18.392 5364.094 58.621799
