D107L200 Waterproof and Water-cooled Brushless Motor 38kw
- Product description
- Specification

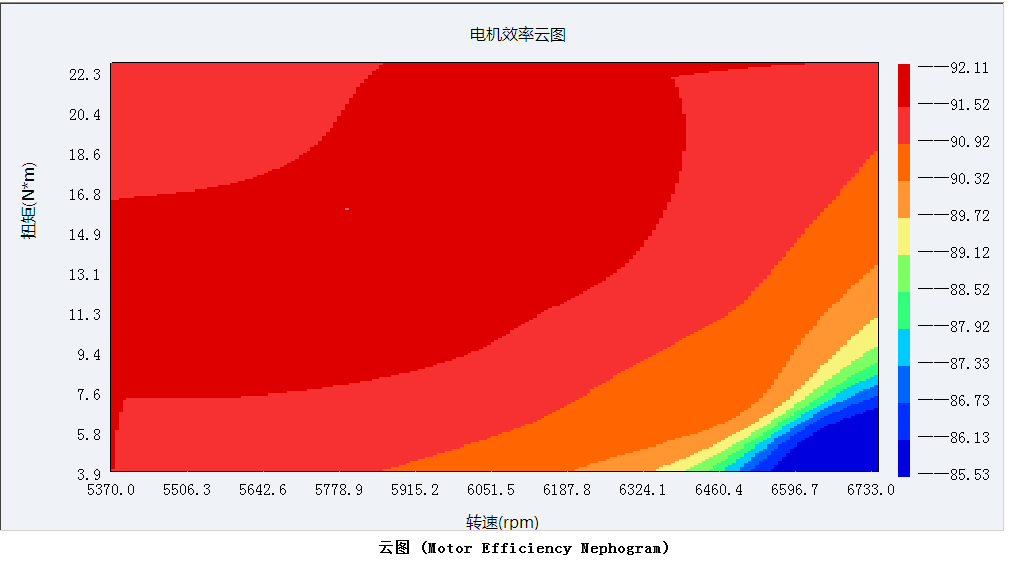

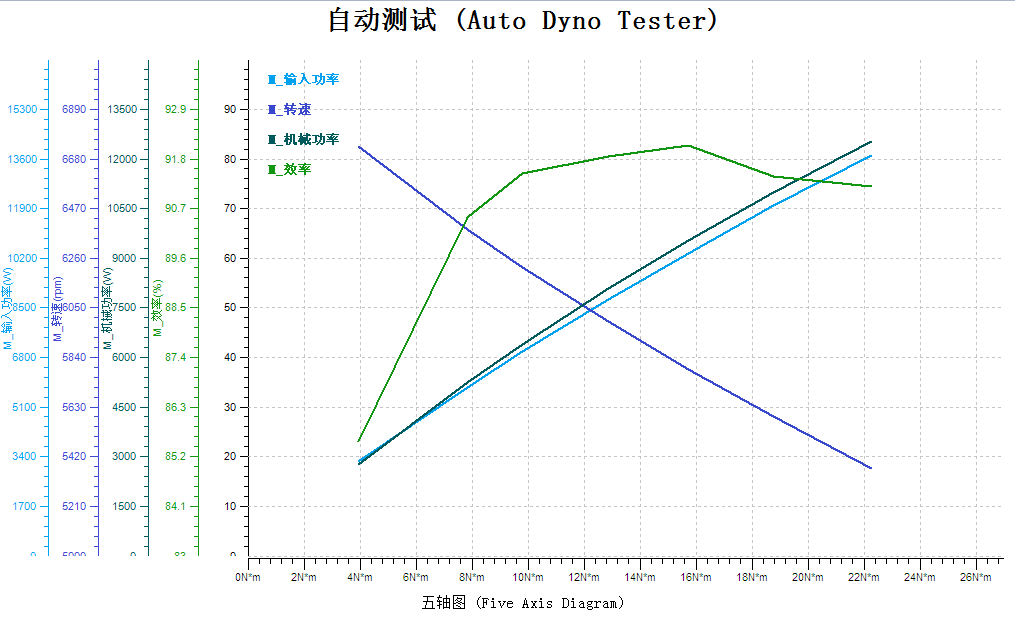

- Dyno Tested data
- Dimension
-
- Brand: Hobiba
- Commodity name: D107L200 Waterproof and Water-cooled Brushless Motor 38kw
- Commodity ID: 107200wcp
D107200 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. <li>Protection Level: IP68 Electric Motor</li> <li>Diameters at 107mm</li> <li>Configuration: 12N/10P</li> <li>Speeds up to 9,500 rpm</li> <li>Maximum output power up to 39KW</li> <li>Maximum Torque output up to 65N*m</li> <li>Cooling Solution: Water cooling</li>
With an advanced 10-pole encapsulated core and 107mm diameter, this series compact DC motors deliver high torque up to 65 N.M with maximum output power at 39KW. Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently underwater and have been widely used for high speed underwater thruster in various underwater thruster, like small boat motor, jetboard, outboard motor, electric trolling motor. etc
Advantages:
-
Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation
-
High performance: Our motors provide extremely high torques with a minimum of power consumption.
-
Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient & smooth operation.
-
High Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
-
Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life
- Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion
-
Cooling solution: water-cooling & Air-Cooling.
We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.
Can be customized for- Sensor or sensorless
- Winding Current
- Shaft Options
- Cable and Connector
- Kv Ratings
- Mounting Options
- Encoder or Non
Keywords:- marine motor
- BLDC motor
- Brushless motor
- D107L200
- electric motor
- boat motor
- watercooling motor
- boat motor
- outboard motor
- underwater thruster
- high power motor
- high power motor
- 40kw electric motor
- boat engine
- IP68 motor
-
Variants D107L200-135 D107L200-112 D107L200-97 D107L200-84 D107L200-68 D107L200-56 Winding Turn & Connection 2.5T 3T 3.5T 4T 5T 6T Voltage Range(LiPo) 10-16S (32-67.2V) 10-20S(32-84V) 12-22S(36-92.4V) 12-26S (36-109.2V) 16-32S (67.2-134.4V) 18-38S(75.6-159.6V) Max Spin Speed(RPM) 9,070 9,408 9,013 9,172 9,139 8,937 Speed Constance kV(RPM/V) 135 112 97 84 68 56 Torque Constance Kt(N*M/A) 0.0801 0.0962 0.1123 0.1396 0.1675 0.1982 No Loading Current at 8.4V(A) 6.5 6.0 5.4 4.2 3.5 3.0 Max Power (KW) 38.9 38.8 38.6 38 38 38.2 Peak Current (A) 1,700 1,400 1,200 990 820 700 Max Efficiency 92.00% >92% 91.00% 91.00% 91.00% 91.00% Max Torque at 60%(N*M) 64.0 64.0 65.5 65.5 65.0 65.0 Continuous Working Current(A) 490 410 352 285 235 200 Weight (kg) 7.65 Construction 12N/10P Cooling Solution Water cooling Max Working Temperature 120ºC Dimension D118*L200 Insulation Voltage & Leak Current AC500V/10MA/3S Working Life 8,000H -
Item
No.
C_Voltage(V) C_Current(A) C_Input Power(W) C_Power Factor C_Efficiency(%) M_Voltage(V) M_Current(A) M_Input Power(W) M_Power Factor M_Frequency(Hz) M_Efficiency(%) M_Speed(rpm) M_Torque(N*m) M_Output Power(W) Synthesis Efficiency
(%)0 51.599998 63.41 3267.01001 0.9986 99.42057 38.099998 52.639999 3248.080078 0.9351 562.869995 85.530251 6733 3.939996 2778.091064 85.034668 1 51.099998 114.919998 5870.049805 0.9995 98.624886 37.279999 97.339996 5789.330078 0.921 530 90.507889 6382 7.839995 5239.800293 89.263306 2 50.900002 140.039993 7123.75 0.9995 98.189857 36.93 119.769997 6994.799805 0.913 522.400024 91.476196 6222 9.819995 6398.57666 89.820343 3 50.540001 178.639999 9023.870117 0.9996 97.476799 36.419998 154.759995 8796.179688 0.901 521.299988 91.867744 5991 12.879995 8080.851563 89.549736 4 50.240002 213.199997 10705.29981 0.9996 96.80056 36.009998 186.850006 10362.79004 0.8891 518.669983 92.113564 5791 15.739995 9545.535156 89.166443 5 49.889999 251.240005 12528.66016 0.9996 95.887749 35.580002 222.800003 12013.4502 0.875 540.460022 91.415291 5590 18.759995 10982.13086 87.656067 6 49.5 292.339996 14463.79981 0.9995 94.984581 35.099998 262.73999 13738.37988 0.8599 507.98999 91.200241 5370 22.279995 12529.43555 86.626167 -
