D107L165 Waterproof Brushless Motor 30KW


D107165 motors are designed for high performance underwater applications where rapid acceleration and high speed are called for.
  • Launched in Sep, 2020
  • Protection Level: IP68
  • Diameters at 107mm
  • Configuration: 12N/10P
  • Speeds up to 9,500 rpm
  • Maximum output power up to 32KW
  • Maximum Torque output up to 56N*m
  • Suitable for jetboard, electric surfboard, boat engine, outboard, pod drive

    • Product description
    • Specification

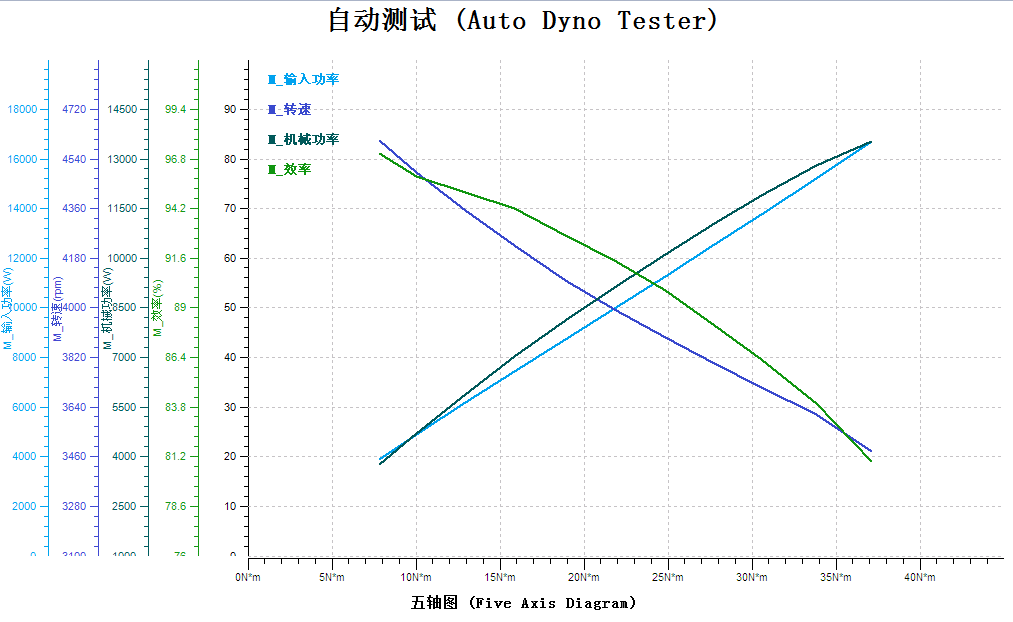

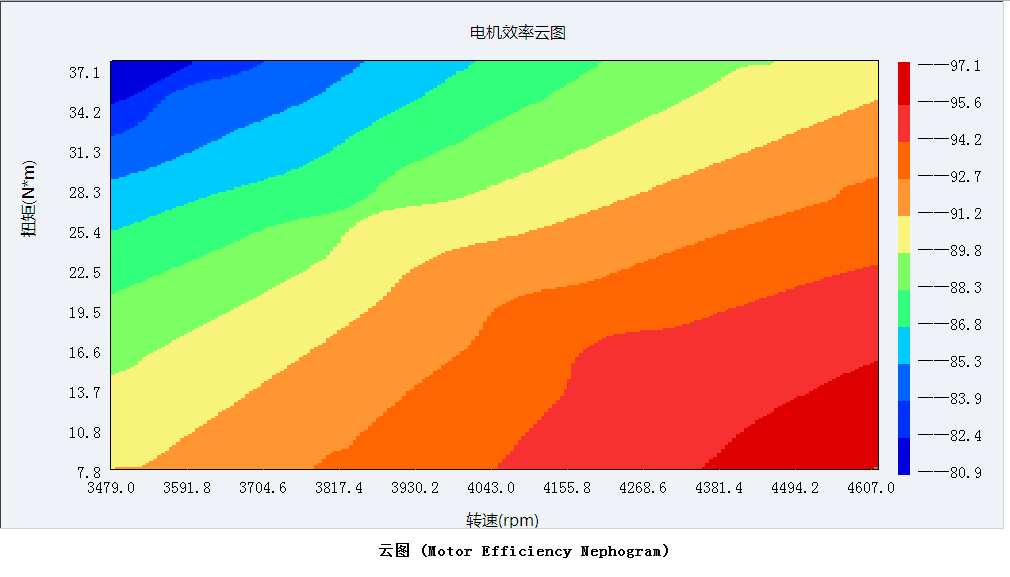

    • Dyno Tested data

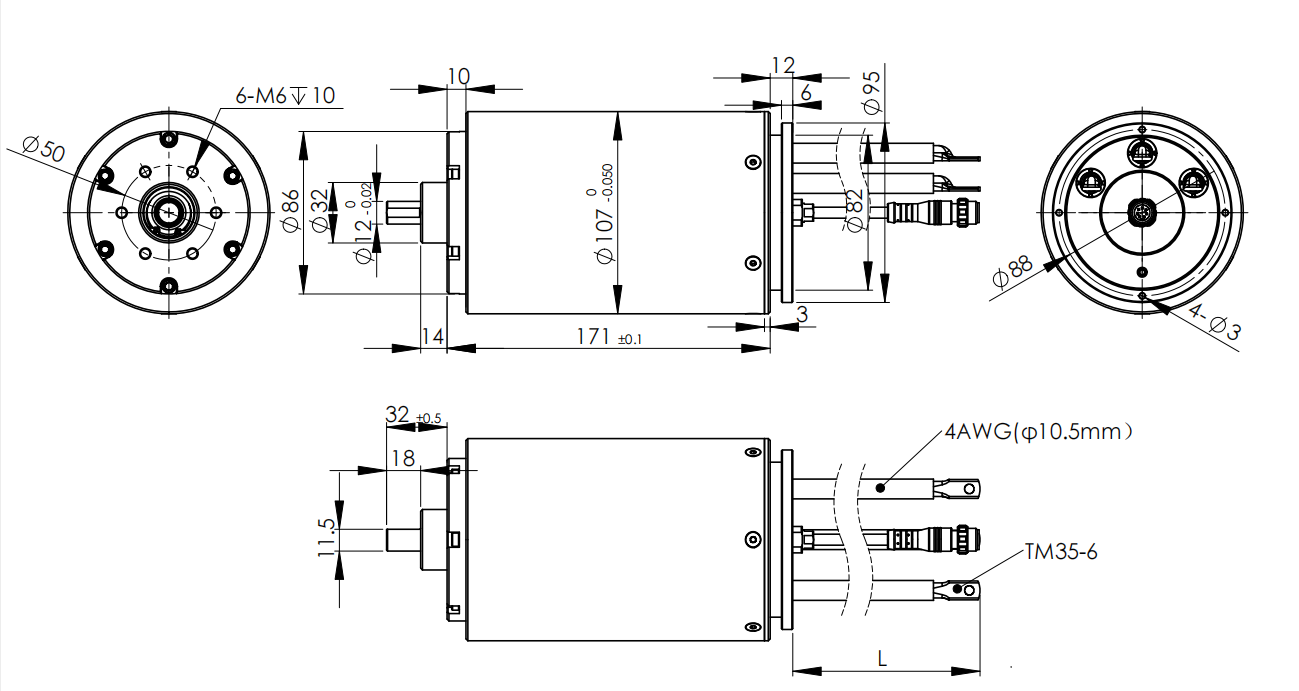

    • Dimension
      • Brand: Hobiba
      • Commodity name: D107L165 Waterproof Brushless Motor 30KW
      • Commodity ID: 107165wp

      D107165 motors are designed for high performance underwater applications where rapid acceleration and high speed are called for. <li>Launched in Sep, 2020</li> <li>Protection Level: IP68</li> <li>Diameters at 107mm</li> <li>Configuration: 12N/10P</li> <li>Speeds up to 9,500 rpm</li> <li>Maximum output power up to 32KW</li> <li>Maximum Torque output up to 56N*m</li> <li>Suitable for jetboard, electric surfboard, boat engine, outboard, pod drive</li>

      With an advanced 10-pole encapsulated core and 107mm diameter, this series compact DC motors deliver high torque up to 55 N.M with maximum 30KW output power.  Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can operated permanently underwater and have been widely used for high speed underwater thruster applications, like small boat motor, jetboard, outboard motor, electric trolling motor. etc

      • Robust & durable: Outer shell in black anodizing aluminum alloy, improve conductive heat transfer, prevent corrosion and oxidation
      • High performance: Our motors provide extremely high torques with a minimum of power consumption.
      • Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
      • Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
      • Compact: High efficiency and high power density realized in a compact design.
      • Long life: Double seal ball bearings with moisture resistant for long life
      • Shaft in SS316 Stainless Steel: withstand redial/axile stree,and work in the sea water against corrosion

      Keywords:
      • marine motor
      • waterproof motor
      • boat motor
      • high power motor
      • underwater motor
      • waterproof electric motor
      • waterproof dc motor
      • IP68 motor
      • electric motor 30kw
      • D107L165
      • inrrunner motor
      • electric engine
      • bldc motor
      • quanly motor
    • Variants D107L165-160 D107L165-140 D107L165-120 D107L165-106 D107L165-95 D107L165-85
      Winding Turn & Connection 2.5T 3T 3.5T 4T 4.5T 5T
      Voltage Range(LiPo) 6-14S (20-58.8V) 8-16S (25-67.2V) 8-18S  (25-75.6V) 10-20S (32-84V) 12-24S (36-108.8V) 12-26S (36-109.2V)
      Max Spin Speed(RPM) 9,408  9,408  9,072  8,904  9,567  9,282
      Speed Constance kV(RPM/V)  160 140 120 106 95 85
      Torque Constance Kt(N*M/A) 0.05775 0.06929 0.08084 0.09239 0.10384 0.11549
      Current @12V without Loading(A) 5.0  4.8  4.2  3.8  3.2  2.5
      Max Output Power (KW)  31.0  31.0  28.0  28.0  32.0  30.0
      Peak Current (A)  1,000  835  715  625  555  500
      Max Efficiency  91.0% 91.0% 92.0% 92%% 93.0% 93.0%
      Continuous Working Current(A) 280  235  200  175  156  140
      Max Torque@60%(N*M) 56.0  56.0  56.2  56.0  55.0  55.5
      Weight (kg) 6.2 6.4 6.3 6.3 6.1 6.1
      Construction 12N/10P
      Cooling Solution water cooling +air cooling
      Max working temperature 120ºC
      Dimension D107 x L165 mm
      Shaft Dimension  D15 x L30 mm
      Lead wires extension  6AWGx300mm
      Insulation voltage & leak current AC500V/10MA/3S
      Working Life 8000H
