D152L65 Brushless Outrunner Motor 45kw

These Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for.
  • Diameters at 152mm
  • Configuration:12N/10P
  • Speeds up to 6,500 rpm
  • Maximum output power up to 46KW
  • Maximum Torque output up to 70N*m
  • Cooling Solution: Water cooling
    • Product description
    • Specification

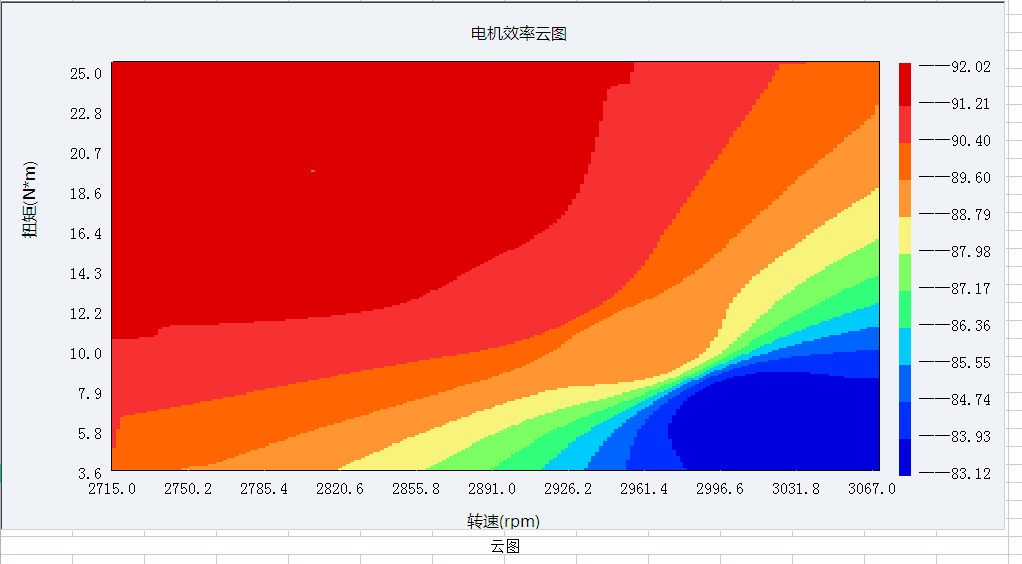

    • Dyno Tested data

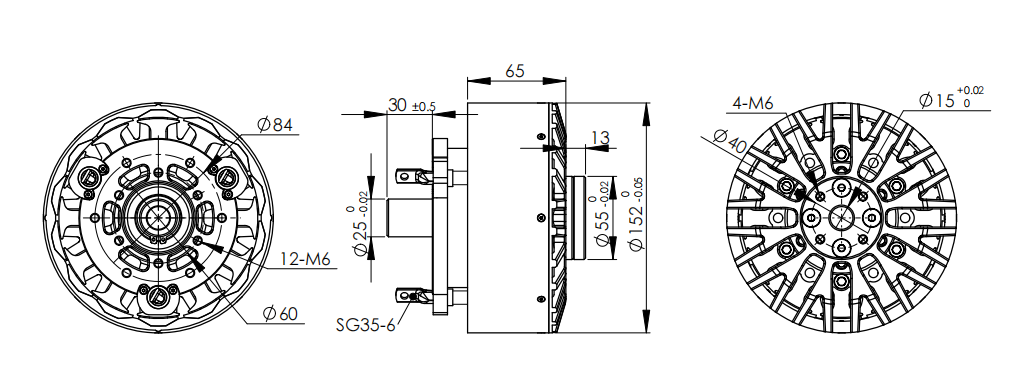

    • Dimension
      • Brand: Hobiba
      • Commodity name: D152L65 Brushless Outrunner Motor 45kw
      • Commodity ID: 15265

      These Motors are designed for high performance gearless use, and are ideal for applications where rapid acceleration and high speed are called for. <li>Diameters at 152mm</li> <li>Configuration:12N/10P</li> <li>Speeds up to 6,500 rpm</li> <li>Maximum output power up to 46KW</li> <li>Maximum Torque output up to 70N*m</li> <li>Cooling Solution: Water cooling</li>

      Quanly 's 'cool' motor technology, significantly boosts torque and sustained power output while being compacter, smaller, lighter and cheaper to manufacture than other competitor motor, widely used in electric vehicles, EVs, motorbikes, etc.



      Can be customized for

      • Sensor or sensorless
      • Winding Current
      • Shaft Options
      • Cable and Connector
      • Kv Ratings
      • Mounting Options
      • Encoder or Non
      Keywords:
      • BLDC motor
      • outrunner motor
      • quanly motor
      • D152L65
      • quanly
      • hobiba
      • electric motor 45kw
      • permanent megnet motor
      • high power motor
      • high torque motor
      • external rotor motor
      • hub motor
    • In-runner Motor D152L65 Specification
      Model P/N D152L65-83 D152L65-70 D152L65-62 D152L65-55 D152L65-50
      Turn 6T-Y 7T-Y 8T-Y 9T-Y 10T-Y
      Voltage range 8-18S(26-75.6V) 10-22S(32-92.4V) 10-24S(32-100.8V) 14-28S(45-117.6V) 14-30S(45-126V)
       Max Spin Speed(RPM) 6274 6468 6250 6468 6300
       kV(RPM/V) 83 70 62 55 50
      Kt(N*M/A) 0.13001 0.15173 0.1734 0.19508 0.21676
      Current at 8.4V without Loading(A) 5.3 4.5 4 3.6 2.9
       Max Power（KW） 45 46 46 45 45
      Peak current（A） 870 750 650 580 520
      Effeciency 93% >92% 92% 92% 91%
      Max torque at 60%(N*M) 69 69 70 70 71
      Weight(KG) 16.9 16.4 16.7 16.3 16.8
      Configuration 12N/10P
      Cooling Solution water cooling
      Dimension(mm) D155*L210
      Max working temperature 120℃
      Insulation voltage & leak current AC500V/10MA/3S
      shaft extension(mm) D25*L50
      Lead wires extension 2AWGx300mm
      Plug 10.0mm plug
      life Span 8000H

    •

      Item No. C_Voltage(V) C_Current(A) C_Input Power(W) C_Power Factor C_Efficiency(%) M_Voltage(V) M_Current(A) M_Input Power(W) M_Power Factor M_Frequency(Hz) M_Efficiency(%) M_Speed(rpm) M_Torque(N*m) M_Output Power(W) Synthesis Efficiency
      (%)
      0 60.279999 24.24 1434.900024 0.982 97.479263 45.400002 20.690001 1398.72998 0.8601 467.429993 83.124687 3067 3.619995 1162.689941 81.029335
      1 60.16 43.720001 2618.800049 0.9956 98.451195 45.200001 36.57 2578.23999 0.9007 435.859985 83.459259 3004 6.839995 2151.780029 82.166641
      2 60.080002 59.200001 3551.139893 0.9983 98.320541 45.009998 49.619999 3491.5 0.9026 429.299988 89.253662 2958 10.059996 3116.291504 87.754684
      3 60 74.449997 4461.549805 0.9988 98.258461 44.84 62.860001 4383.850098 0.8981 372.290009 90.970924 2907 13.099996 3988.028809 89.386627
      4 59.919998 88.940002 5324.359863 0.999 98.075455 44.66 75.739998 5221.890137 0.8912 341.690002 91.65519 2860 15.979995 4786.133301 89.891243
      5 59.84 104.919998 6271.919922 0.999 97.892197 44.439999 90.300003 6139.720215 0.8833 355.799988 92.021484 2807 19.219995 5649.861816 90.081856
      6 59.77 119.209999 7118.140137 0.999 97.763741 44.259998 103.620003 6958.959961 0.8761 366.359985 91.624641 2760 22.059996 6376.12207 89.575676
      7 59.700001 133.630005 7969.830078 0.999 97.533951 44.099998 117.32 7773.290039 0.8676 365.420013 91.295967 2715 24.959995 7096.700195 89.044563
